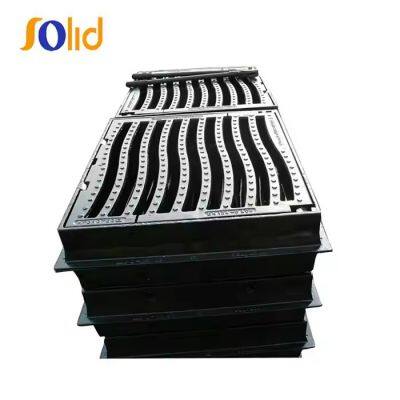

EN124 Ductile cast iron square sewer manhole cover and floor drain grate

Product Description

Product Description
Standard: EN124/GGG500-7
Material: Ductile Iron
Coating: Bitumen coating
Load Capacity:C250
Item
Description
Frame size (mm)
clear opening (mm)
Height (mm)
Unit weight (kg/pc)
GULLY GRATING
1
C250 gully grating
300*300
170*170
45
9
2
C250 gully grating
400*400
270*270
45
15
3
C250 gully grating
500*500
370*370
50
23
4
C250 gully grating
550*550
420*420
50
27
5
C250 gully grating
600*600
470*470
55
31
6
C250 gully grating
700*700
570*570
60
48
7
D400 gully grating
500*500
370*370
80
32
8
D400 gully grating
550*550
420*420
80
38
9
D400 gully grating
600*600
500*500
80
43
10
D400 gully grating
700*700
570*570
80
58
11
D400 gully grating
700*700
600*600
100
95
