Automatic Punching and Double Loop Wire Spiral Binding Machine Double Coil Comb Book Calendar Binding Machine

Product Description

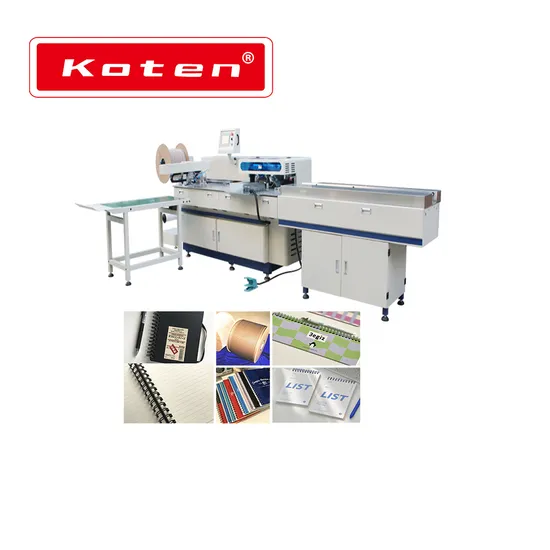

Automatic Punching And Binding Machine for Double Spiral Book HB-520PB
The latest automatic punching and binding machine for double spiral book,The only machine in China that can complete punching,forming,binding and collecting together.It is also the only machine that can solve the punching and binding of the cover larger than the inner page.The machine has at least ten items invention patents,which can improve the efficiency above 80%.
Advantage
1.The machine can automatic feeding,layering punching,cover punching,hole alignment,binding and collecting.
2.The machine only need 1-2 personnel to operate
3.High quality punching mould,the maximum thickness of punching is 6mm.The mould can add oil automaticly.One mould has two sides with twosizes of the hole,it can use as new mould for four times,which makes the mould can be used for ten times of life than the normal mould.
4.It just need one minute to change the mould size.
5.The machine don't have much strict demand at the quality of the double loop wire,it can adjust the double loop wire automatic.
6.The machine can recognize the book that the cover is bigger than the inner paper,then punch it separately
7.Automatic remind the malfunction.

Working Speed	800-2000 pcs/hour
Thickness of punch for one time	1mm-6mm
Max punching thickness	13mm(special product:16mm)
Max punching times for one book	5times
Max book size	510mm*800mm
Min book size	100mm*140mm
Max book size for feed conveyor	420mm*420mm
Size of double loop wire	1/4-5/8
Pitch	2:1,3:1
Size of paper for binding	100mm-520mm
Air compressor(customer prepare)	3KW
Air pressure	7-8Bar
Machine size	4800mm*2600mm*1600mm
Weight	2000kg
Power	382V/50HZ/60HZ/4.5KW

Name	Brand
Touching Screen	WEINVIEW(TaiWan China)
PLC	Mitsubishi(Japan)/Delta(Taiwan China)
Power Protection Switch	CHNT(China)
Stepping Motor	Leadshine(China)
Solid State Relay	FOTEK(TaiWan China)
Wwitching Power Supply	China
Cylinder	AirTAC(TaiWan China)
Stepper Motor Driver	Leadshine(China)
Phototube	TaiWan China
Photoelectric Sensor	FOTEK(TaiWan China)
Servo	Delta(Taiwan China)
Motor	GPG(China)
Linear Motion Guide	HIWIN(TaiWan China)
Electric Appliance	CHNT(China)

---
