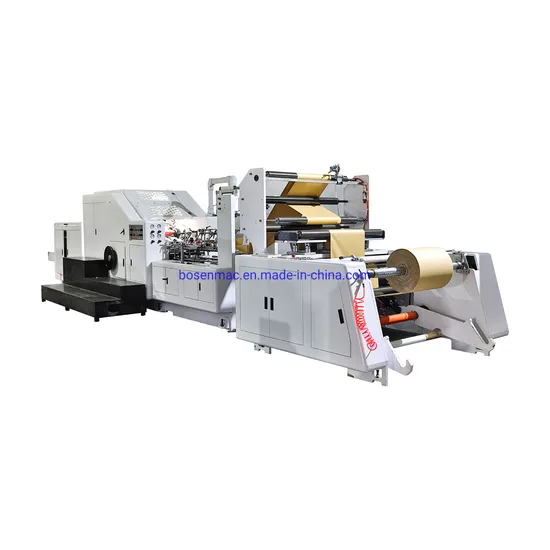

Automatic Square Bottom Paper Bag Making Machine for Food Packaging Price

Product Description

Product Description This is designed to manufacture square bottom paper bags from paper roll to roll in blank or printed , and can complete side gluding tube forming,cutting,bottom impressing,bottom gluing bottom forming and final product output within one time.
Control by PLC system,equipped with touch screen and servo motor for bag length control,this machine can produce various specifications paper bags.
It's an ideal machine for making paper bag for foodstuff bag or shopping bag.
Main Feature
1.Using hydraulic lifting for material handing, and auomatic tension control system for unwinding.
2.Center clip, drum wheel clamp and drum wheel machanical design,which can significantly reduce the adjust ment time for replacing size.
3.Equipped with automatic lubrication supply system and jams alarm system.
Product Parameters The parameters below for reference, we accept customization

Model	BS-400V	BS-650V	BS-850V
Paper Wight (g/ping)	40-80	40-80	40-80
Bag Length (mm)	160-420	220-650	220-850
Paper Bag Width (mm)	70-260	80-300	80-350
Max.Roll Paper Width (mm)	260-720	260-840	260-960
Bag Making Speed (pcs/min)	60-400	60-400	60-400
Main Motor (kw)	8	8	8
Weight (kg)	3000	4200	5200
Dimension(L×W×H)(m)	2.1×4.5×1.9	2.1×5×2	2.1×5.3×2
