Directional Valve Elements

Product Description

1. Product Description
- Direct operating directional spool valves with mechanical, manual operation - For sub-plates mounting - Handle operation - Porting pattern to DIN 24 340 form A, and ISO 4401 Directional Valves with Mechanical and Manual Operation type WMM6...L6X, are direct operated spool valves which switch the flow fluid by rotating the handle to move the spool axially. They have 2-position,3-position as well as various spool symbols, optional detent device or return spring. And they are sub-plate mounting. Type WWM.../ It consists of housing (1), handle (2), control spool (3), one or two return springs (4) and push rod (5). In the unoperated condition the control spool (3) is held in the neutral or starting position by the return springs (4). When the handle(2) is pushed to right or left, the handle(2) acts at the push rod (5) by hinge and direct controls the spool(3), at that time, the spool(3) moves to an expected position. When the handle returns to Zero position, spool returns to normal position by return spring. The switched position is operated by the handle. Type WWM.../F Their operating principle is basically same as the type WWM.../, and they are fitted with 2 or 3 switched positions and a detent, so all the switched position is fixed. Cartridge throttle The cartridge throttle is necessary since actual flow may be larger than the performance limits of the valve during switching process. It is fitted in the P-line of the directional valve.

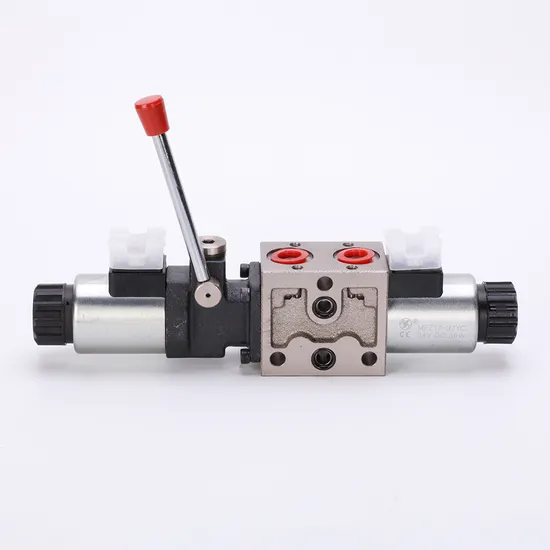

2. Product Photos
3. Company Profile
NNINGBO POWER HYDRAULIC MOTOR CO.,LTD is a wel-trusted manufacturer in hydraulic industy.
The company have achieved IS09001:2015 quality system, relying on strong technology development and production capacity,our annual output 600 thousand pieces. We produce all kinds of hydraulic valve, mainly include Rexroth and Yuken series of hydraulic valve products. Our products are widely used in mining, engineering, construction, plastics, chemicals, machine tools and so on. Our goal is to continue to deliver cost-effective products and more improved electro-hydraulic technology solutions.
We also aim to help our customer to attain competitive advantage. It is our business to create more solutions, not just to satisfy the needs of our customers but also to help them progress in the industry.

4. Certificates
5. Factory
6. FAQ
Q1: Are you trading company or manufacturer ? A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock, or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ? A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us.

---
