Granite Tile Cutting Machine Marble Stone Saw Slab Cutting Table Saw Machine Bridge Ceramic Glass Cutting Machine for Quartz Natural Artificial Stone

Product Description

Stone Bridge Saw

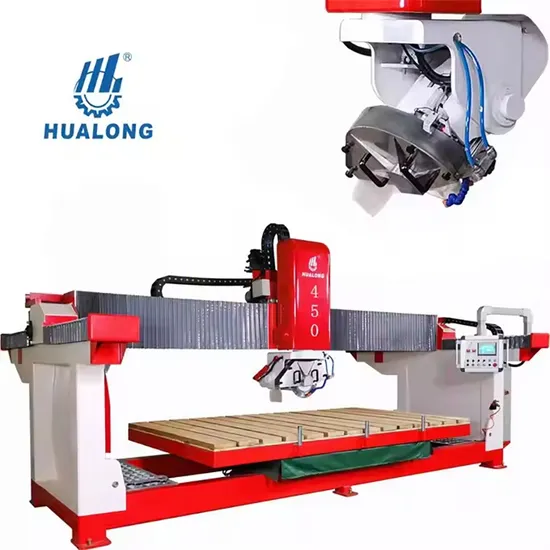

Hualong HLSQ-450 is anmonoblock Automatic Bridge Stone Cutting Machine with Siemens PLC controller. It offers interpolated axes, +/-270° rotating head and a fully tilting/rotating table, is programmable and sutable for cut slab of grainte, marble, quartz and other natural or engineered stones to size. Fully warranty provided.

TECHNICAL DATA HLSQ-450
Configuration	Diameter of saw blade	mm	Φ400 - Φ450
	Dimension of working platform	mm	3300 x 2000
	Power of main motor	kw	15
	Power of tool slide reciprocating motor	kw	1.1
	Power of crossbeam shifting motor	kw	1.5
	Power of hydraulic station motor	kw	2.2
	Power of elevator motor	kw	1.5
	Gross power	kw	21.3
Main Performance Parameters	Max. length of horizontal cutting	mm	3300
	Max. thickness of cutting	mm	90
	Max. lifting travel of cutter	mm	300
	Water consumption	m3/h	2
Measurement	Gross weight	kg	5400
	Dimension (L x W x H)	cm	5700x3260x2765

The specific functions are listed as followings. -- 0° to 45°head tilting, 0°to 270°head rotation.
-- 0° to 85° table tilting, 0°to 360°table rotation.
Main Features 1) Monoblock structure for easy transport, installations and no foundation needed.
2) Siemens, Schneider electric and other high quality accesories such as Hiwin linear guide are adopted.
3) 0°, 90°, 180° and 270° automtaic head rotatation and blade positioning.
4) Blade can tilt 45° automtically for chamfering cutting.
5) Automatic cross cutting repeatedly so easy by pushing one-button.
6) Manual cuts available for simple machining
7) Worktable can rotate 0-360°, pause at every 45° automatically or stop at any degree by remote control.
8) Worktable can tilt 0-85°, easy for slab loading.
Detail Images Linear Guide
Brand: Hiwin
Original: Taiwan, China

Famous products, top quality used on crossbeam (X axis), carling (Y axis) and Z axis to gurantee perfect cutting accuracy and long lifespan.
Control system
Brand: Siemens
Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC processing operation for powerful functions, which offer friendly and inteligent control.

Laser Reticule Apparatus
Origin: China
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.

Incremental Encoder
Brand: ELCO from Germany

For the determination of head movement in X, Y, Z direction and worktable rotation to ensure position precision without the slightest deviation

Electric Cabinet
Brand: Siemens, Schneider, Sanch...
Quality electrics used to ensure stable performance.

More advantages
1) 25 years + experience professional on making stone machines.
2) Good performance and Long life service --- Our HLSQ series bridge saw was first exported to Brazil in 2012, which is still working well now.
3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting parameters.
4) For chamfering cutting, the blade tilt of HLSQ-450 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.

Product Photo
1. who are we?
We are based in Fujian, China, start from 1997,sell to Domestic Market(60.00%),South Asia(10.00%),Africa(8.00%),North America(5.00%),Eastern Europe(5.00%),Southeast Asia(3.00%),Western Europe(3.00%),Northern Europe(2.00%),South America(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Stone quarry machinery,Stone processing machine
4. why should you buy from us not from other suppliers?
1)Made with 30 years+ expertise and patents
2)Many machines available to order
3)Experienced techs for all your questions
4)Customization available
5)Parts & Accessories quick supply for needs
6)After-sale service offered, including engineers to overseas.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,Express Delivery;
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

---
