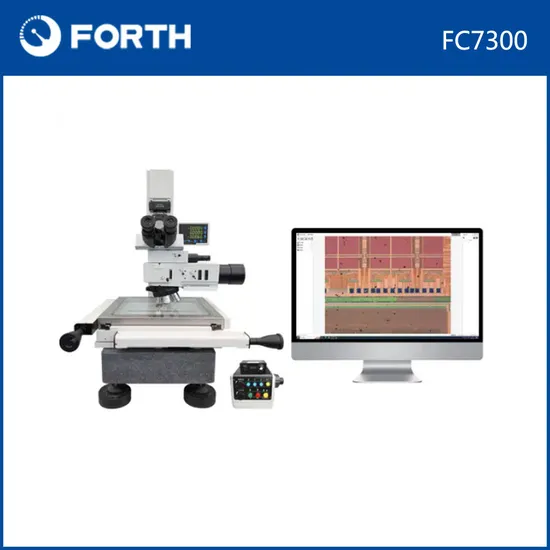

Precision Lab Microscope for Metallurgical Examination and Research

Product Description

Product Description Basic information

product model	FC7200	FC7300
measuring range mm mmmm	200x200x200	300x300x200
Glass countertop size mm	230x230	330x330
Countertop size mm	306x306	406x406
Overall dimension LxWxH mm	600x700x780	700x900x780
machine weight KG	100	150
Mirror cylinder image	Binocular barrel, with a standard TV camera port
Observation method	Standard open field objective (optional dark field, polarized and DIC differential interference and auxiliary focus standard open field objective lens (optional light and dark field, polarized and DIC differential interference and auxiliary focus module to achieve height measurement function)module for height measurement)
eye lens	binocular 10X
objective lens	Infinity open field gold phase objective lens:5x,1 Ox,20x,50x(100x match)
converter	Internal positioning of the 5-well converter
episcopic illumination device	With color filter slot and polarized device slot, with 5 WLED light source, adjustable brightness; optional light field reflector, with switching device
Transmission lighting device	LED higher source luminance
focusing system	Hand pulse electric precision focus control
Grate size resolution	XY 0.0005mm/ Z 0.0001mm
measurement accuracy(pm)	X-Y< ( 2.5+0.02L ) pm Z< ( 4+0.02L ) pm L measured length in mm)

Detailed Photos
Installation Instructions Product Features: Designed based on the fuselage structure of the OP international brand Constructed with base granite + precision cast aluminum, three-layer metal precision platform Z-axis controlled by electric pulse for precision focusing (0.0005~0.001mm) Optional Z-axis for focus height measurement assistance Equipped with Japanese Olympus microscope optical main body and objective lens Wide field of view with clear, scintillation-free images High precision measurement suitable for various applications Infinite long distance open field gold phase objective lens for long working distance measurements High brightness LED or halogen lighting options Diffraction-free observation with variable aperture aperture Rapid release device for quick movement of workbenches High eye mirror observation CCD Image Imaging with 12 megapixels Company Name: Guangdong FORTH Science Technology Co., Ltd.
Company Profile Welcome to Guangdong FORTH Science Technology Co., Ltd. Specializing in the sales and maintenance of a variety of instruments, including length measuring, optical, shape, material testing, and chemical analyzers for food and medicine.
Established in 2005, our headquarters is located in Guangzhou, a city known for economic development and excellent transportation infrastructure.
We work with globally renowned instrument brands like FISCHER, ZEISS, BRUKER, MITUTOYO, SHIMADZU, KEYENCE, FOSS, and STRUERS, ensuring high-precision instruments and exceptional user experience.
Our product range includes projectors, altimeters, surface roughness measurement instruments, color difference meters, hardness testers, spectrometers, and chromatographs.
Committed to customer satisfaction, we prioritize quality, cutting-edge products, and innovative solutions for superior quality, advanced technology, and exceptional service.
Join us at Guangdong FORTH Science Technology Co., Ltd. for a premium experience!

---
