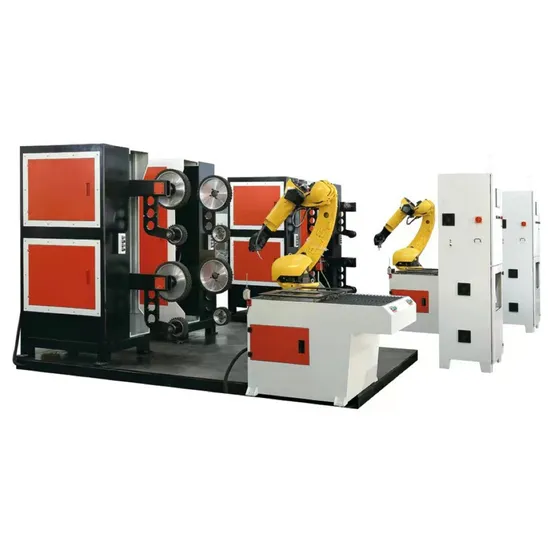

Intelligent Industry Robot Sanding Belt Machine Automatic Polishing Machine for Taps

Product Description

Intelligent industry robot sanding belt machine Automatic Polishing Machine for taps
Product Parameters

Robot	M20iD/25
Double layer sanding belt machine(mm)	1800*750*2050
Dual station feeding table workpiece tray(mm)	1250*900*800
Electrical control cabinet(mm)	700*500*2000
Maximum power of the device(KW)	7KW
base(mm)	3050*2300*110
Rated voltage of equipment(V)	380V
Sand belt specifications(mm)	4000 Width can be customized according to the product
Maximum linear speed of sand belt grinding and polishing(m/s)	29
three phase asynchronous Motor	3KW-4P
air pressure(Mpa)	0.4-0.7
Equipment size(mm)	4000*2600*2200
Total weight of equipment(kg)	3000KG

Product Description
Model features
This robot polishing combination uses an industrial robot to achieve fully automatic control, and can be reprogrammed to complete various polishing operations in three-dimensional space. Including but not limited to the following technical features:
1. There are multiple available grinding contact wheels. During the grinding process, the system can control the speed of the sand belt, automatically adjust the tension of the sand belt, and automatically select the currently available contact wheel;
2. Provide offline programming software to reduce programming time;
3. The sand belt machine is driven by a synchronous belt;
4. Fixture: After evaluating and analyzing the product, design a fixture with the best angle for robot polishing. The polishing process does not require changing angles, and has the advantages of high efficiency, strong rigidity, and high positioning accuracy.
Company Profile
Taizhou Chuzhou Electromechanical Equipment Co., Ltd. which is located in yuhuan city, Zhejiang Province . The company is a professional production, sales of brass valve sanitary ware machinery and equipment group company. We have 5 factories, mainly producing machines for copper valves sanitary ware products : automatic hot forging Trimming Machine , shot blasting machine, automatic polishing machine, automatic CNC machine tool, automatic assembly machine, whole line processing and testing equipment . We have a group of professional engineers in charge of technology, manufacture, installation and testing, so we can guarantee the good performance of our machines. We can provide customers with full service and technical consultation according to their different requirements . Cosmos company would like to offer the best machines, and build ourselves as the bridge and window for both overseas and domestic enterprises and customers. Products are exported to Russia, India, Iran, Turkey, United Arab Emirates, Vietnam, Uzbekistan, Saudi Arabia, Syria, Jordan, Indonesia, Singapore, Thailand, Pakistan, South Africa, Egypt, Nigeria, Kenya and other countries.
welcome to build business relations, cooperate and develop together with us. Please feel free to contact us for details.
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: What is the delivery time?
A2: 20-40 working day, based on factory's production order conditions.
Q3: How to installation machine?
A3: We supply overseas service, engineer can go to your place guide installation and debugging.
Q4: What size machine suit for us?
A4: We design machine following your request, usually based on your workpiece size, weight and efficiency.
Q5: How to control the quality?
A5: One year warranty,and 10 teams QC to check every part from drawing to machine finished.

---
