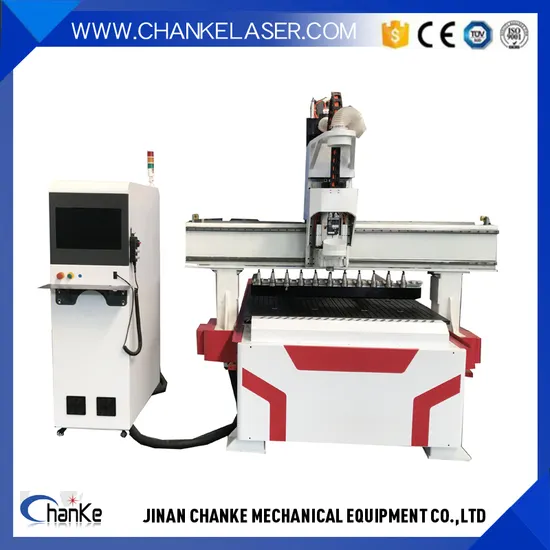

1300X2500mm Atc 12 Tools Wood CNC Working Machine for Furniture Wooden Works

Product Description

Product description 1. Tiwan 4 axis SYNTEC 11MA.
2. With 9.0 HQD air cooling spindle
3. Hiwin 25 square guide rails.
4. 11kw Telta inverter
5. Tool sensor
6. Servo motor with reduction mobile and Z axis contracting brake.
7. Vacuum and T-slot work table combine with 5.5kw vacuum pump
8. And it adopts a more advance XYZ Auto-oil-feeding system.
9. Heavy duty type machine bed and gantry for stable working.
Machine parameters

Model	chanke-1325 ATC cnc router
X, Y Working size	1300*2500mm
Z feed Height	200mm
Table Surface	Vacuum table
X, Y Structure	Rack and Pinion, Taiwan 25 Linear Square Guide Rail
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	35000mm/min
Max. Working Speed	25000mm/min
Spindle Power	9 KW HQD air cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Inovance servo motor
Working Voltage:	AC 380V /50/60Hz
Command Language	G code
Control System	SYNTEC 11MA
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software	Artcam
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%

Application materials and industries
Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.Applicable Materials:
Applicable Industry:
Wood furniture Industry, Furniture decoration, music instrument, wooden arts and crafts, large scale board engraving, solid wood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, advertising industry, Die industry, Relief sculpture, toy production, bedside cupboard, screen sculpture etc.

---
