Poultry manure dehydrating machine manure dehydration machine
Introduction of poultry manure dehydrating machine/ manure dehydration machine
This machine is used to reduce the water content of animal dung, poulty manure,acid-sludge, biogas slurry, medicine dregs, kitchen rubbish, and many other dregs.
The solid content , the moisture of final product is about 40%,you can’t press out any water by hands.
Working principle of poultry manure dehydrating machine/ manure dehydration machine
1.Sludge pump in the manure pits upgrade the original fecal residue to solid-liquid separator,
the extrusion screw which is installed in the mesh will push the original fecal residue to move
forward by 46 rev / min speed.
2. Dry product will come out from discharge outlet by pressing of cylinder.
The liquid( which is filtered through the sieve mesh )will flow into the conditioning tanks.
Features of poultry manure dehydrating machine/ manure dehydration machine
1. small; low rotate speed; simple operation; convenient installation and maintenance;
low cost; high efficiency; fast investment return, no need to add any flocculating agent.
2. It will separate the original livestock manure to liquid and solid organic fertilizer:
the liquid organic fertilizer can be directly used for crops; the solid organic fertilizer
can be shipped to regions that lack of fertilizer to improve the soil structure.
3. the solid dung can also be made into granulate fish feed.
Technical parameters of poultry manure dehydrating machine/ manure dehydration machine
Model
| Capacity(m3/h)
| Weight
|
| Liquid cow dung
| Liquid pig dung
| Liquid chicken dung
|
|
JX-180
| 4-6
| 5-12
| 2-4
| 75kg
|
JX-210
| 5-8
| 10-16
| 3-5
| 115kg
|
JX- 260
| 7—10
| 15-20
| 5-7
| 165kg
|

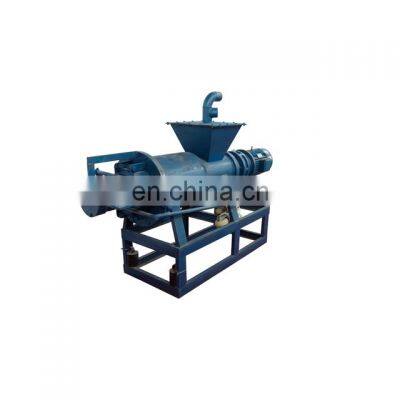

Pictures of poultry manure dehydrating machine/ manure dehydration machine
>>
