Ab Double Layers Co-Extrusion Film Blowing Machine for Heat Shrink Film

Product Description

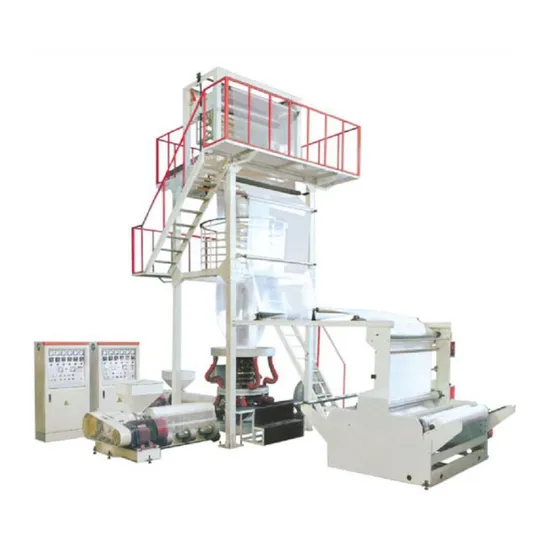

AB Double Layers Co-extrusion Film Blowing Machine for Heat Shrink Film
Product Description
Product Overview:
The AB type two-layer film blowing machine is equipped with two extruders, which can produce two layers of film, each layer of material / color is different. Die design ensures good color separation for each layer. The two layer film blowing unit can continuously blow various LDPE, HDPE, LLDPE, mLLDPE, EVA and other composite packaging films with different width and thickness of 0.02-0.15mm.
Application: Courier bag, heat shrink film, plastic bag inside woven bag, heavy duty garbage bag etc.
Suitable material: HDPE / LDPE / LLDPE / EVA/ Caco3 / PBAT / PLA
Film layer: 2 layers
Screw L/D ratio: 30:1 / 32:1
Product Parameters

Model	XY-2L800	XY-2L1000	XY-2L1200	XY-2L1500
Suitable material	HDPE / LDPE / LLDPE / EVA/ Caco3
Film width	200-800mm	300-1000mm	400-1200mm	500-1500mm
Roller width	900mm	1100mm	1300mm	1650mm
Film thickness	0.01-0.15mm
Max.output	50-80kg/h	60-100kg/h	70-120kg/h	80-150kg/h
Screw diameter	A:50mm B:50mm	A:55mm B:55mm	A:60mm B:60mm	A:65mm B:65mm
Screw L/D	30:1	30:1	30:1	30:1
Driving motor	11 + 11kw	15 + 15kw	18.5 + 18.5kw	22 + 22kw
Gearbox	133 + 133	146 + 146	173 + 173	173 + 173
Die size	HDΦ80 LDΦ120	HDΦ120 LDΦ200	HDΦ150 LDΦ220	HDΦ150 LDΦ250
Weight	3800kg	4500kg	5000kg	7000kg

Possible Product
Company Profile
Ocheng machinery equipment is subcompany of China YanFeng group ,which was found in 1987 .The company'existing plant area is 60000 square meters.It has advanced experimental test equipment and production line in the industry,In recent years,it has spent 30 million yuan to purchase more than 30 high-precision CNC machine tools,more than 200 various types of machine tools ,and fixed assets of more than 500 million yuan.

We specializing in R & D and manufacturing of various gear reducers, different types of chillers, film blowing machines, bag making machines, bubble film machines, printing machines, recycling machines ,motorcycle accessories and other machine assembly parts etc.we have got certificate such as ISO9001 and etc ,Who provide professional NON-STANDARD products with complete design and customization to satisfy your requirement.

We has gathered a batch of outstanding professional team with more than 10 years' experience in this industry. Adopting brand-new modulation, the productions of our company are featured by short delivery time, high performance and more stable operation.

Our products sell well all over the country and are exported to Southeast Asia, the Middle East, Central Asia, Russia, Europe, South America, North America, Africa, dozens of countries and regions, winning a good market response and customer reputation.

We pay close attention to internal management, after-sales service, scientific and technological progress and information. We continue to grow and develop at the same time.
FAQ
Q: Are you factory or trading company ?
A:We are factory specialized in plastic machine for many years, also we have the right to export goods by ourselves.
Q: Where is your factory? How can i visit your company?
A:Our factory is located in wenzhou city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). We will pick you up on airport or station.
Welcome to visit our factory
Q: How long is your delivery time?
A:Normally our delivery time is 15-30 days. If you need it ugently, we can make it about7 days
Q:What are your terms of payment?
A:We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight
Q: What package do you use for the product?
A:Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost.

Q:Does your factory provide installation service?
A:Our engineer can go to customer factory to installation. Customer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.
Q:What's your warranty policy?
A:12 month guarantee and whole life maintance.
Q: What is your company after sale service?
A:We would express the free replacement parts as soon as possible.

---
