Veterinary Gastroscope Animal Endoscopy Equine Gastroscope Equine Endoscope Veterinary Endoscope

Product Description

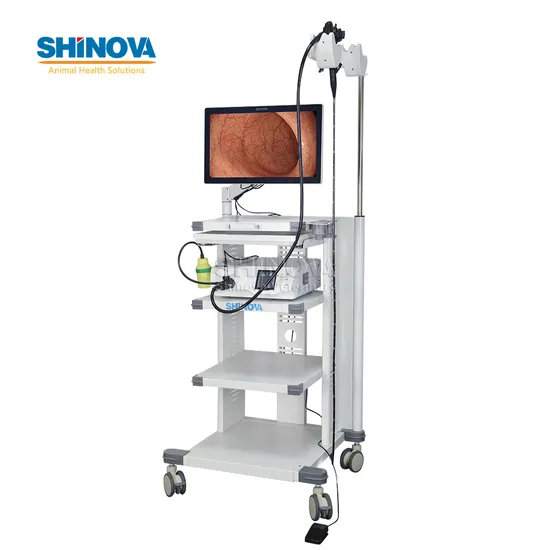

High-definition Veterinary Video Endoscope
Veterinary Gastroscope Animal Endoscopic Veterinary Video Endoscope Equine Gastroscope Equine Endoscope Veterinary Endoscopic Veterinary Endoscope
Model: HiScope 60/70/70F/90F/300F/350F Product Description Features:
Professional endoscope image workstation to recall medical data truly and accurately
Medical record management system to support report printing
lmage processor with 21.5-inch touch screen medical grade monitor
High-definition CMOS technology with 720P or 1080P resolution for better viewing
Ergonomic endoscope handle with multi-function buttons and 4-way angulation
High brightness, high contrast and wide viewing angle
High brightness LED light source with good color restoration and long operation life
9-level brightness adjustment for a variety of scenes
AIl-in-one light source and air/water pump greatly save operation space
Four-direction bending and larger angulation make it easier to observe
Φ2.2-3.2mm working channel is compatible with various endoscopic instruments.
Wider view angle of 140° offers more excellent and detailed images.
Applications
Wider clinical applications for gastroscopy, colonoscopy and bronchoscopy in companionanimals like dogs and cats, and for gastroscopy, colonoscopy, bronchoscopy, esophagos-copy, hysteroscopy, rhinoscopy, pharynogoscopy and laryngoscopy in large animals likehorses and cattle.
Packaging & Shipping Standard Configuration:

1)	Endoscope
2)	Medical Monitor
3)	Endoscope Trolley
4)	Mini Image Processor
5)	Water Bottle
6)	Light Source with pump

Accessories:

1)	Foreign Forceps/Biopsy Forceps(optional)
2)	HDMI-DVl Cable
3)	Power Cable
4)	Laptop Computer(optional)
5)	USB Cable

Product Parameters Specifications:

Model	Diameter of Insertion Tube	Working Channel	Working Length	View Angle	View Depth	Range of Bending	Resolution
HiScope 60	6.8 mm	2.2 mm	1500 mm	120°	3~100 mm	210° (U), 130° (D) 100° (R), 100° (L)	HD 720P (1M pixels)
HiScope 70	7.8 mm	2.8mm	1500 mm	120°	3~100 mm	180° (U), 130° (D) 100° (R), 100° (L)	HD 720P (1M pixels)
HiScope 70F	7.8mm	2.2mm	1500 mm	140°	3~100mm	180°(U), 130°(D) 100°(R),100°(L)	FHD 1080P (2M pixels)
HiScope 90F	9.2mm	2.8mm	1500 mm	140°	3~100mm	180°(U), 130°(D) 100°(R),100°(L)	FHD 1080P (2M pixels)
HiScope 300F	9.2mm	2.8mm	3000 mm	140°	3~100mm	180°(U), 130°(D) 100°(R),100°(L)	FHD 1080P (2M pixels)
HiScope 350F	11.5mm	3.2mm	3500 mm	140°	3~100mm	180°(U), 130°(D) 160°(R),160°(L)	FHD 1080P (2M pixels)

Main parameters of cold light source/Air pump (Model: LS-180)
Screen: 4 inches
Light Source: LED
Color temperature: 3000K~7000K
Luminous flux: 600lm
Color rendering index: ≥90
Bulb specification: 4.2V, 60W
Air pump pressure: 45-65kPa
Light source adjustment: Level 10
Air pump regulation: 3 stages (2.8L/min, 3.2L/min, 3.7L/min)
Power: 140W
Power supply: 100-240V, 50/60Hz
19 "HD endoscope medical display(Model:E190)
Display size: 19"
Color support: 1.67 billion
Resolution: 1280*1024
Point distance: 0.294*0.294mm
Brightness: 300cd/m2
Contrast ratio: 1000:1
Viewing Angle: 178°
Response time: 25ms
Input signal ports: DVI, S-VIDEO, CVBS, YPbPr, VGA
Output signal interfaces: DVI, S-VIDEO, CVBS, YPbPr
Installation standard: VESA 100*100mm
Input voltage: DC12V
Power consumption: 40W
MTBF (Mean time to Failure) : >50,000 hours
Dimensions (width * height * thickness) : 419mm*(441-564)mm*253mm
Weight: 8.5kg
EndoCart (ENDOCART-6)
Aluminum steel and ABS material, beautiful and firm
Rotating arm 1
1 endoscope bracket (including 2 endoscope brackets)
1 multi-functional bracket
1 keyboard stand
Shelf 4 layers
4 casters with brake function
Car with backplane cable box, beautiful and safe
Shelf size: 560mm*480mm
Car size: 655mm*745mm*(1450-1600)mm
Detailed Photos
Company Profile About Us
SHINOVA, incorporated in October 2005, is a professional veterinary equipment manufacturer and veterinary solutions provider primarily for animal hospitals and clinics.
With leading research, design, operation and service capabilities, Shinova devotes ourselves to providing advanced veterinary techniques for veterinarians to solve all the diagnostic and treatment difficulties of animal care.

---
