Automatic Reinforcing Mesh Panel Mesh Welding Equipment

Product Description

Product Description

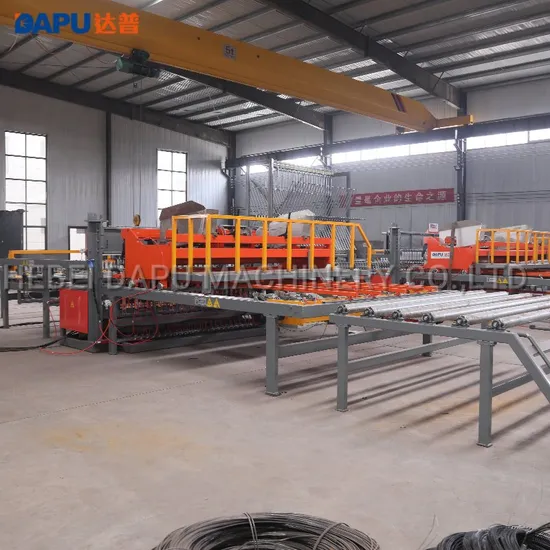

Reinforced wire mesh welding machine for construction
This is our new type wire mesh welding machine DP-GW-2500B, which adopts SMC bally air cylinders to control welding, the welding speed can be up to max.80-100 times/min. We can also supply other types of wire mesh welding machines 5-12mm and 3-8mm.
Product Description
1. Longitude wire sending Servo motor (1.5kw) and planetary reducer for sending longitude wires when welding, can save time.
2. Cross wire feeding. The cross wire feeder will be specially designed; it can bear 1 ton wires, much more than before.
3. Brake motor&helical gear reducer
The principal axis connects brake motor&helical gear reducer directly, strong power, high stable.
4.Welding transformers 12 pcs cast water-cooling transformers, high efficiency. The welding degree is adjusted by PLC.
Technical Parameter

Model	DP-FM-2500A+	DP-FM-3000A+	DP-GW-2500B	DP-GW-3000B
Air cylinder type	SMC 80 double acting air cylinder		SMC 90 single acting bally air cylinder
Wire diameter	3-8mm		5-12mm
Longitude wire space	100-300mm		100-300mm
Cross wire space	Min.50mm		Min.50mm
Mesh length	Max.12m		Max.12m
Mesh width	Max.2500mm	Max.3000mm	Max.2500mm	Max.3000mm
Welding electrode	Max.24pcs	Max.31pcs	Max.24pcs	Max.31pcs
Welding transformer	150kva*6pcs	150kva*8pcs	150kva*12pcs	150kva*16pcs
Welding speed	Max.100 times/min		Max.80-100 times/min
Weight	5.2T	7T	8.5T	9.8T
Main machine size	12.12*5.4*2.1m	12.13*6*2.1m	12.13*5.4*2.1m	12.13*6*2.1m

Auxiliary Equipment
Wire straightening and cutting machine GT6-12

Model	GT6-12	Wire diameter	5mm-12mm
Cutting length	500-12000mm	Speed	52m/min
Straightening motor	11KW	Cutting motor	5.5kw
Straightening accuracy	±2mm	Cut accuracy	±10mm
Machine size	2940×800×1100mm	Weight	1200KG

Machine Packing
FAQ
Q: Can you make the machine according to my voltage?
A: Yes, usually the popular voltages are 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.Q: Is there any cooling system on your machine?
A: We use water cooling welding electrodes & welding transformers on the machine.Q: How many workers are needed to operate this machine?
A: 3-4 workers.Q: Is the mesh size adjustable?
A: Yes. The mesh size can be adjusted randomly within range.Q: Can I adjust the welding degree?
A: Yes, you can adjust the welding current and welding time. It is controlled by PLC.Q: What's your payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or L/C, or cash etc. It is negotiable.Q: What's the production capacity of this machine?
A: If 10mm wire diameter, 100*100mm mesh size, one minute can finish welding 5m length mesh.Q: What's the power supply needed for this machine, does it need air power?
A: The power supply should be min.250kva (5-12mm). The bigger, the better. Air compressor needs 0.3m^3.
