US$3.90-4.90
|
10 Pieces
(MOQ)
|
Basic Info.
Valve Structure
Pilot Piston Structure
Power Supply
DC Solenoid Valve
Usage
Flow Control, Direction Switch
Application
Industrial Usage, Household Usage
Acting Type
Internal Pilot Type
Working Pressusre
0.15 ~ 0.8 MPa
Max. Proof Pressure
1.2 MPa
Working Temperature
-20 ~ 70 Degrees
Voltage Range
AC: +-15% ; DC: +-10%
Power Consumption
AC: 3.0-4.0va DC: 2.8-3.0W
Protective Class
IP65 (DIN40050)
Max. Acting Frequency
5 Cycles/S
Body Size
1 Series Body Size
Transport Package
Carton / Pallet
Specification
Net. Weight: 1.5 kg
Production Capacity
20000 PCS/Months
Product Description
Basic Product Information:

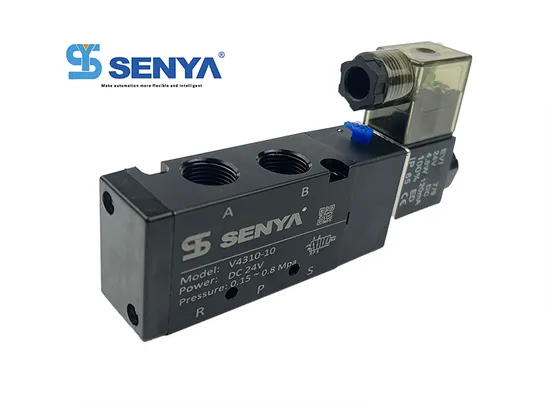

| Model | V4110-M5 | V4110-06 | V4210-06 | V4210-08 | V4310-08 | V4310-10 | V4410-10 | V4410-15 |
| V4120-M5 | V4120-06 | V4220-06 | V4220-08 | V4320-08 | V4320-10 | V4420-10 | V4420-15 |
| V4130-M5 | V4130-06 | V4230-06 | V4230-08 | V4330-08 | V4330-10 | V4430-10 | V4430-15 |
| Port size | M5 | 1/8" | 1/8" | 1/4" | 1/4" | 3/8" | 3/8" | 1/2" |
| CV value | 0.31 | 0.67 | 0.89 | 0.89 | 1.4 | 1.68 | 2.79 | 2.79 |
| Working Medium | Air (to be filtered by 40 um filter element) |
| Acting Type | Internal pilot type / External pilot type |
| Reset Type | Air reset / Spring reset |
| Lubrication | Not required |
| Working Pressure | 0.15 - 0.8 Mpa ( 21- 114 Psi) |
| Max. Proof Pressure | 1.2 Moa ( 174 Psi) |
| Working Temperature | -5 - 60 ºC |
| Voltage Range | AC: ±15% ; DC:±10% |
| Power Consumption | AC220V: 3.5 VA | AC110: 3.5 VA | AC24V: 4.0 VA | DC12/24V: 2.5W |
| Insulation&Protection | Class F; IP 65 (DIN40050) |
| Connection Form | Line type or Terminal type |
| Highest Acting Frequency | 5 Cycles / Second |
| Shortest Excitation Time | 0.05 Second |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Product Description: -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Company Introduction:
Ningbo SENYA Pneumatic Technology Co., Ltd. manufactures and exports integrated company in Ningbo City, China. We have focused on producing valves, cylinders, and other pneumatic-related products with a high brand reputation and rich industrial application experience. Since 1994, SENYA has adhered to customer value maximization as the product development and manufacturing principle.
We have more than 100 employees and 30% of them are professionals. We have a QC team and R&D Dept. with robust research strength and rich production experience.SENYA has passed the ISO9001:2008 international quality system certification advance in the pneumatic line, use computer network management system and first-class employee training center. SENYA is moving in the direction of modernization, internationalization, and group. Enhance the competitiveness of the SENYA brand, explore the world market with SENYA, and keep improving the product quality and service to reach the best. SENYA adheres to the company principle of "Customer Value Maximization".
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Staff Presence:
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Applications:
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Marketing Support:
SENYA is not just satisfied with becoming an excellent pneumatic product supplier, but also wants to guide, train, and support our clients to help them with more flexible and efficient products. In the meanwhile, SENYA is determined to become a strategic partner of our clients in business. Diversified support from the exhibition, advertising, customer exploration, store decoration, posters, sample display, etc. SENYA hopes to provide assistance in various aspects to help our agents expand more local market shares to achieve a win-win situation.
SENYA hopes that we can bring you our unique value and make a second leap with a brilliant tomorrow!!!
>>
