Product Details
Product Description
Product Description

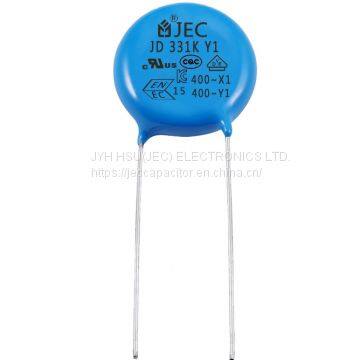

331K 400V china capacitor new safety capacitors capacitor types y1 safety capacitor For Sale
Safety Capacitor Features
1. High-k dielectric ceramic dielectric, encapsulated with flame retardant epoxy resin
2. Pass the safety certificates of VDE / ENEC / IEC / UL / CSA / KC / CQC
y1 safety capacitor DESCRIPTION
Electrical characteristics:
Technical requirements reference Standard
| IEC 60384-14 ; EN 60384-14 ; IEC UL60384 ; K 60384
|
Certification mark
| VDE / ENEC / IEC / UL / CSA / KC / CQC
|
Class ; Rated Voltage(UR)
| X1 / Y1/Y2 ; 400VAC / 300VAC/500VAC
|
Capacitance Range
| 10pF to 10000pF
|
Withstand voltage
| 4000VAC for 1min/2000VAC for 1min/1800VAC for 1min
|
Capacitance Tolerance
| Y5P±10%(K ) ; Y5U,Y5V±20%(M) measured at 25℃,1Vrms,1KHz
|
Dissipation Factor (tgδ)
| Y5P,Y5U tgδ≤2.5% ; Y5V tgδ≤5% measured at 25℃,1Vrms,1KHz
|
Insulation Resistance(IR)
| IR≥10000MΩ,1min,100VDC
|
Operating Temperature
| -40℃ to +85℃ ; -40℃ to +125℃
|
Temperature Characteristic
| Y5P,Y5U,Y5V
|
Flame Retardant Epoxy Resin
| UL94-V0
|
Safety Ceramic Capacitor Y1 Type Application Area :
1.Apply to power circuits of electronic equipment include noise suppression circuit, antenna coupling and bypass circuit.
2.Apply to all kinds of small household appliances control boards, power filters, high-frequency AC loads, switching power supplies, electronic ballasts, LED energy-saving lamps, etc.
Matters Needing Attention:
1. Do not store the capacitor in corrosive gas, especially in the presence of chlorine, sulfur, acid, alkali, salt, moisture, etc.
2. The storage temperature and the relative humidity should not be too low or too high.
We Are Provide Safety Capacitor and Cheap Resistors and Resistor China, If You Need, Welcome To Contact Us To Know More.
