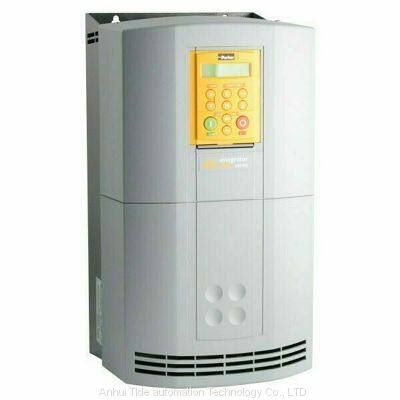

The Parker AC690 + Integrator series is a single family of AC drives designed to meet the requirements of variable speed
applications ranging from simple single motor speed control to more complex integrated multi-drive systems. At the heart of the AC690 + is an advanced motor control model based on a 32-bit microprocessor. This provides an excellent dynamic performance platform that adds a large number of communication and control options, allowing you to customize the drive to suit your exact requirements. The AC690 + offers 380-460V three-phase 1 to 1500 HP and 220V to 240V 1 to 75 HP.
Brand
| Parker
| Product Type
| AC Drive
|
Drive Axis Type
| Single Axis Technology
| Product Series
| AC690
|
Input Voltage
| 1*230VAC3*230VAC
3*380-480VAC
3*500-690VAC
| Output Power
| 0.75 - 355 KW
|
Compatible Motor Type
| Induction
Spindle
| Compatible Feedback Device
| Incremental Encoder
|
Modes of Control
| V/HzSensorless Vector
Closed Loop Vector
| Communication Interface
| RS232 / RS485CANopen
DeviceNet
Profibus-DP
Ethernet TCP/IP
Link Communications
|
Operating Temperature
| 0-45°C / 0-40°C with IP40 cover /' derate up to max 50 °C,32-113F / 32-104F with IP40 cover (derate up to 122F max)°F
| Operating Altitude
| Up to 1000m ASL (derate >1000m)
|
Overload Rating
| Heavy Duty Rating (ConstantTorque) : 150% for 60sHeavy Duty Rating (ConstantTorque) : 180% for 1s
Normal Duty Rating
(VariableTorque - pumps and fans) :115% for 10s
| Specifications Met
| CE(EMC & LVD) UL Listed cUl listed
|
