Manufacturers Supply and Produce 20b Grinder, Grain Grinder, Spices, Pepper Grinder

Product Description

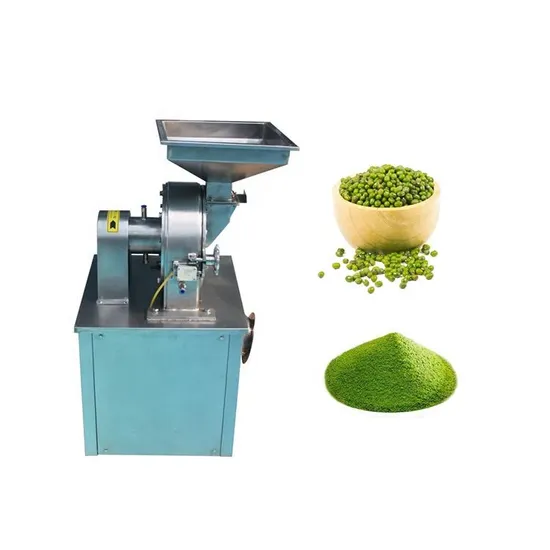

Manufacturers supply and produce 20B grinder, grain grinder, spices, pepper grinder
Universal corn seasoning grinder machine is a Multifunctional Super fine powder grinder .It is widely used in pharmaceutics,chemical and foodstuff,etc. It can be used for making sugar powder , salt powder and crystal material. Spice industry like chili , pepper , pimento,coriander,cumin , cinnamon , cardamom , Star anise, celery seed , , ginger , Licorice ,etc Grains like rice , chaff , corn , Sweet potato bran , cocoa bean,coffee ,etc Chemical like resin,plastic .......
This machine is widely used in the crushing operation of a variety of small blocks, strips and granular materials with medium and low hardness in the pharmaceutical, food, chemical and other industries. The pulverization fineness can be adjusted freely between 12-120 meshes according to the screen and production requirements. This machine utilizes the high-speed relative movement between the movable toothed disk and the fixed toothed disk, so that the crushed materials are crushed by the combined effects of toothed rod impact, friction and material collision. This machine has simple structure, scientific and reasonable design, sturdiness, stable operation and good crushing effect. The crushed materials can be directly discharged from the grinding cavity of the main machine. The particle size can be obtained by replacing mesh screens with different apertures. The inner wall of the casing is all machined to reach the surface. The smoothness has changed the phenomenon of rough inner wall and powder accumulation of the previous models, so that the production of medicine, food, chemical industry, etc., is well received and trusted by users in the pharmaceutical, food, chemical industry and other industries. Although the universal crusher is "omnipotent", it is not "invincible and invincible". It is mainly used for crushing materials with low hardness in the pharmaceutical, food, chemical and other industries. It can also be used for crushing medium and low hardness. The effect of non-metallic minerals is better.
Product Description
This machine utilizes the high--speed relative motion between the moving and regular tooth set, which makes the material crushed through concussion, rub and crush between the materials. The structure of machine is simple, firm and operating steadily and the result of crushing is well, no dust nuisance. The crushed material is discharged directly from mainframe. The different sizes of the granule are gained through replacing different pore sizes of sieve. In addition, this machine is made of the whole stainless steel, surface of the inside of the machine is smooth, which changes the phenomenon of inboard wall coarse and accumulating of powder in the past. It meets national standard even more to make medicines, food, chemical industry, etc, and meet the requirement of GMP.
Specification

item	value
Output (kg/h)	20-150
Feeding Size (mm)	<6
Output Size (mesh)	10-120
Power (kW)	4
Range of Spindle Speed(r.p.m)	4500
Material	SUS304, Other
Application	Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition	New
Type	Grinder
Place of Origin	China
Brand Name	Reyes
Voltage	220v/380v
Dimension(L*W*H)	550*600*1250 mm
Certification	CE
Weight (KG)	200KG
Warranty	1 Year
	Video technical support, Online support
Key Selling Points	High Productivity
After Warranty Service	Online support
Applicable Industries	Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Other
Local Service Location	None
Showroom Location	None
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided

Features 1. Uniform fineness: can be sieved smoothly;
2. High output: customers need non-standard equipment that can be tailored to meet the requirements of high-yield customers;
3. Less restricted by the characteristics of the material: such as suitable for crushing various grains, sugar, medicinal materials, etc.;
4. Strong applicability: small test equipment can be configured with 220V voltage,
5. Crushing method: tooth disc, hammer type;
6. Material: all stainless steel, contact material stainless steel;
7. Operating system: common buttons, PLC touch screen;
8. Dust removal method: simple dust removal, pulse dust removal;
9. This machine is equipped with a water circulation jacket to reduce the temperature of the machine cavity. Technical Paramers

Reyes Universal Crusher
Model	Res-20b	Res-30b	Res-40b	Res-60b
Capacity (kg/h)	20-150	30-300	40-800	60-1200
Speed of principal axis (r/min)	4500	3800	3400	2600
Size of input granules (mm)	<6	<10	<12	<15
Fineness of products (Mesh)	10-120	10-120	10-120	10-120
Power (kw)	4	7.5	11	22
Weight (kg)	200	320	550	960
Overall Size(L×W×H) mm	550*600*1250	750*600*1450	900*750*1650	1000*950*1800

Details
1.Install a limit switch for protection 2.Install water cooling device 3.Current display 4.Start up button 5.Stop button 6.Power Indicator 7.Emergency stop Output size of the particles can be obtained by changing different sieve, Also type of knife can be selected according to different materials.

---
