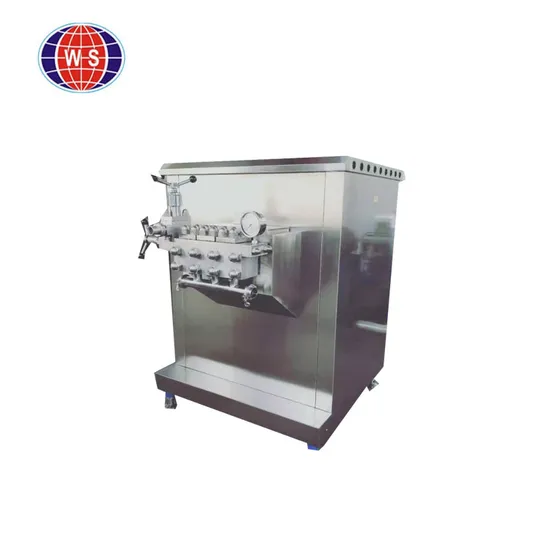

Ws New Type High Pressure Homogenizer Mixer Machine

Product Description

A. power end
motor: Siemens Bede Motor Co., Ltd.
Drive: two-stage variable speed; one-stage belt pulley, two-stage crank gear symmetrical transmission; special alloy bearing bush, double-sided rolling bearing, horizontal stability, low noise, and mechanical efficiency increased by about 10% on average.
Lubrication: splash type automatic lubrication and oil

B.Hydraulic end
The main pump body: three types, the gland adopts radial self-sealing, durable, no leakage.
Plunger: 3 plungers, durable, safe and easy to disassemble. Square plunger seal assembly, code X4310.
(Replacement of seal does not require unloading of pump body)
One-way valve: 3 sets of cone valve in and out, 6 sets in total. Durable and reliable, ensure flow rate ≥ rated flow value.

model	3000-25mpa
(50Hz)rated flow rate 50Hz power	3000l/h
()max work pressure(test pressure)	25MPa
rated work pressure	≤20MPa
material in pressure	0.2-0.3MPa
/ Liquid temperature / viscosity	100ºC/≤1000CP
rated motor pwoer	22KW
Interface diameter	material in - out tube fittingRD70*1/6"
size	1.35*0.94*1.24m
weight	1200KG
lubricate oil	N68or Mobil SHC626

---
