US$130.00-1,200.00
|
1 Piece
(MOQ)
|
Basic Info.
Frequency Characteristics
Low Frequency
Power Source
Switching Regulated Power Supply
Application Range
Industrial and Mining Enterprises
Insulated Strength
2500V, 1min Does Not Have The Puncture
Insulated Electric Resistance
≥5mΩ
Working Frequency
50~60Hz
Ambient Temperature
-15ºC~+45ºC
Stabilizing Accuracy
±1% ~5%
Waveform Distortion
≤ 0.1%
Input Voltage
380V / 400V / 440V / 480V (Can Be Customized)
Transport Package
Wooden Boxes
Specification
10KVA-3600KVA
Product Description

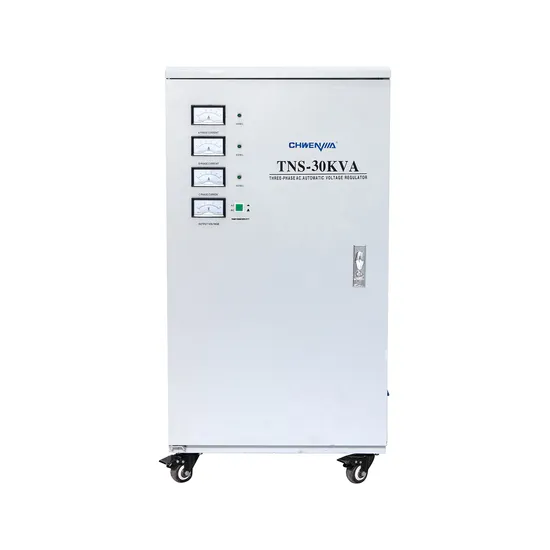

TNS (SVC) -6kva medical equipment equipped with special regulators SFW -100 kva three-phase regulator anti-interference
SVC new product development automatic ac household voltage stabilizer consists of automatic coupling regulator, sampling control board, actuator. It has the characteristics of small volume, light weight, small distortion of output waveform, fast response and so on. Especially suitable for home air conditioning, refrigerator, television, music center and so on. It can also extend their range of use, and is thus a stabilizer of the idealistic AC, the modern home. The product has the least power consumption and can be used continuously.
TECHNICAL PARAMETERS:
| No. | Item Name | Item Description |
| 1 | OUTPUT VOLTAGE | 260-450V |
| 2 | WORKING FREQUENCY | 50 / 60Hz |
| 3 | REGULATION MODE | Simultaneous phase regulation |
| 4 | CONSTANT VOLTAGE PRECISION | ±(1~5%) adjustable |
| 5 | NOISE | 55 dB |
| 6 | INSULATION CLASS | F |
| 7 | OPERATION TIME | ≥ 100,000 hours |
| 8 | PROTECTION CLASS | IP 20 |
| 9 | VOLTAGE WITHSTANDING | 2000V, 1min. Not broken |
| 10 | WAVE DEFORMATION / DISTORTION | ≤ 0.1% |
| 11 | EFFICIENCY | ≥ 98% |
| 12 | INSULATION RESISTANCE (MΩ) | ≥ 5MΩ |
| 13 | RESPONSE TIME (ms) | ≤ 100ms |
| 14 | TIME FOR STABILIZING | When the input voltage jumps 10% relative to the rated value, the stabilizing time is less than 1.5s. |
| 15 | PACKING | Plywood packing |
| 16 | ALTITUDE | < 2000m |
| 17 | RELATIVE HUMIDITY | < 90% |
| 18 | AMBIENT TEMPERATURE (ºC) | -15ºC to +45ºC |
| 19 | COOLING METHOD | Forced air cooling with fan |
| 20 | ANTI-SURGE PERFORMANCE | The input terminal is equipped with a high-energy surge impulse suppressor, which effectively solves the fatal impact of the pulse spike voltage between 10μs and 100μs, such as lightning induction in the equipment. |
>>
