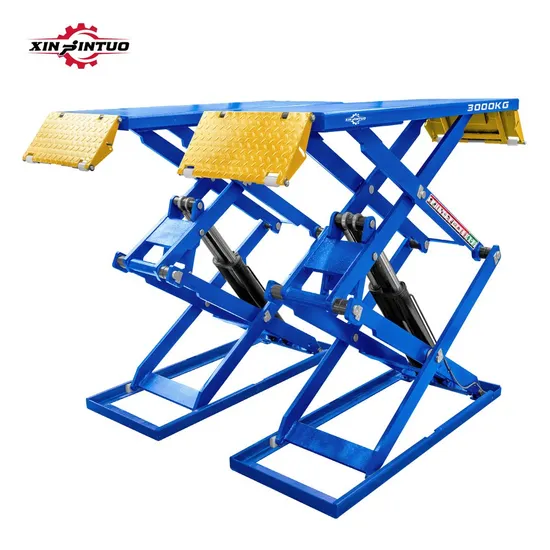

Xinjintuo Super Thin on Ground Hydraulic Garage Scissor Car Lift for Sale

Product Description

Product Overview Product Description 1. High-strength manganese steel scissor lift has stable structure, large load capacity, smooth lifting, easy installation and maintenance.
2. Hidden scissor thin structure which occupied small space, also don't need ground pits.
3. Start-up device guarantees 3.5ton lifting capacity at the initial lifting stage and smooth lowering at the last lowering stage.
4. The pneumatic double-teeth self-locking system and the anti-explosive pipe insurance structure, safe and reliable.
5. Easy to handle control unit (24v control voltage) with emergency stop.
6. Drive-on ramps which can be locked on level as platform extension, suitable for more long chassis vehicles.
7. Imported hydraulic pressure, pneumatic and electrical components.
8. Easy for tire removal and chassis maintenance.
9. CE certified.
Please consult the product manager for more product functions and introductions!
Specification

Super thin small scissor car lift specification
Lifting Capaciy	3000KGS(6600LBS)
Lifting Height	1850MM(72.83")
Platform Width	645mm
Lifting Time	50-60s
Power Supply	220V/380V
Motor Power	2.2KW
Gross Weight	880KGS(1936LBS)
Platform length	1480-2090MM

Product Details SCISSOR TYPE THICKENED SUPPORT ARM
The Golden triangle conforms to mechanical design,made of genuine materials, stable and powerful. SAFETY MECHANICAL LOCK
Laser cutting is formed in one time, with stronger Bite force and enhanced factor of safety. FIX THE FOUR OIL CYLINDERS THROUGH THE SHAFT
High quality oil pipe lifting without pressure, joint sealing without oil leakage,manganese steel buckle. WIDENING PANEL
The vehicle is stable and not swaying during lifting and lowering, ensuring the safety of personnel and property. POLYMER WEAR-RESISTANT SLIDER
Made of polytetrachloroethylene material, it is more wear-resistant and durable to use.
Customer shown Packing & Delivery Certifications Company Information YANTAI JINTUO AUTOMOBILE TECHNOLOGY CO.,LTD. was founded in 1996, which is located in Yantai city. It specializes
in auto body repair system, auto lift and wheel alignment with technology development, product development, production,
sales and service. Our company has passed the ISO9001, and our products has got CE approved, now we have some
national patents, which show that we have a professional R&D Team. Our auto body repair system has been widely
exported all over the world and are widely used in various domestic and foreign repair shops and 4S vehicle maintenance
stations.
We has participated in domestic professional equipment exhibitions and global body repairs in Las Vegas for several years.
The Equipment Exhibition (NACE) has won unanimous praise and has become a world-renowned professional equipment
manufacturer.
Welcome you choose "XINJINTUO" brand, We will provide you with our heart.
FAQ Q: How do you control your production quality?
A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection
before each shipment.
Q: Can I have a visit to your company before placing an order?
A: Sure, welcome to visit JINTUO AUTO TECH. There is a showroom in our factory, you can get all what you want about the auto equipment.

Q: May I know the Lead time?
A:The lead time of our machine is 7 to 20 days.
Q: Can you provide the whole workshop automotive equipment?
A: Yes. we have 8 series contains nearly all automotive equipment. Also we have helped many customers to open their body shop.
Q: How long is the warranty?
A: Our warranty is 12 months, we will send free parts for replacement in warranty, supply spare parts for lifetime.
Q: Are you a factory?
A: Jintuo has been invested a factory with an area of 12,000 square meters, specializing in the production of various frame machine, car lift,
wheel alignment etc.

---
