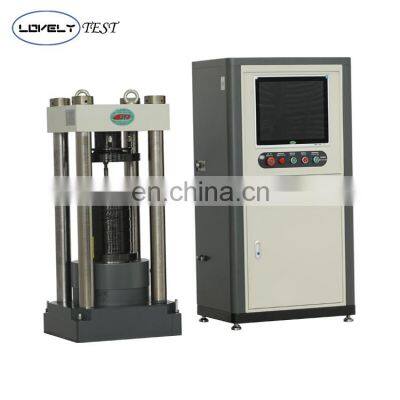

Microcomputer control electronic servo universal pressure testing machine
Usage Overview
The series of test machines are hydraulically powered,using electro-hydraulic servo control technology rock,mortar,brick,concrete
and other building materials to test the mechanical properties of compression,showing the loading force value,loading speed and
loading curve.the test data is automatically processed,stored,and printed.
Product Description
Specification
Maximum test force(KN)
|
| HYE-2000
| HYE-2000A
| HYE-2000B
|
Test accuracy
|
| Level 1
| Level 1
| Level 1
|
Space adjustment method
|
| Pad adjustment
| Manual screw sdjustment
| Electric screw adjustment
|
Pison stroke
|
| 80
| 80
| 80
|
Sensor type
|
| Oil pressure
| Oil pressure
| Oil pressure
|
Maximum spacing between two pressure plates(mm)
|
| 400
| 400
| 400
|
Upper platen size(mm)
|
| Φ225
| 240*240
| 240*240
|
Lower platen size(mm)
|
| Φ295
| 350*260
| 350*260
|
Motor power(KW)
|
| 1
| 1
| 1
|
Mainframe dimensions(mm)
|
| 900*400*1250
| 985*600*800
| 985*600*800
|
Control cabinet dimensions (mm)
|
| 650*450*1250
| 650*450*1250
| 650*450*1250
|
Machine weight(kg）
|
| 920
| 900
| 910
|
Unpacking display
Our Advantages
Installation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
our customer
Company Profile
` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you.
· All our products are made in China .Excellent quality with competitive price
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
FAQ
Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
