Marine Mooring Multi-Eyes Connecting Plates

Product Description

Product Description

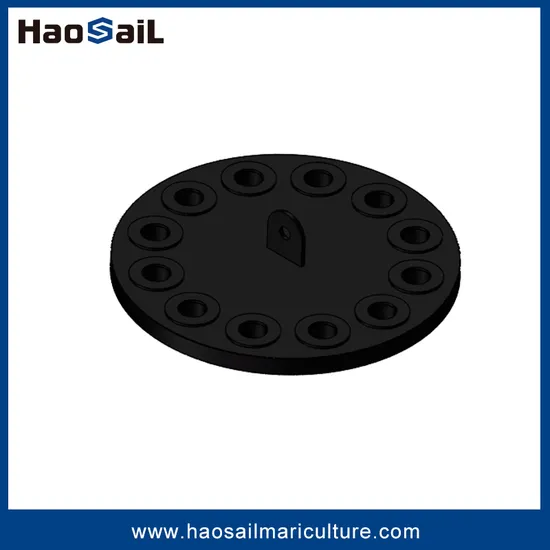

Multi-eyes Plate
Besides the regular three-eye and four-eye plate, We can also supply aquaculture mooring plates(multi-eyes plate) as per customer's special requirement, such as twelve-eye plate and sixteen-eye plate.
Aquaculture Mooring Plate / Connection Plate / Mooring Wheels /Multi-eyes Plate/Mooring Plate, Circular
DESCRIPTION:
Mooring plates are the main connecting points of the whole grid structure where all components come together and are locked with shackles, the grid system, the mooring lines, the buoy chains and the cage bridles.
Plates are usually round shaped, with sufficient holes for the shackle pins to be inserted. Dimensions MBL 50T, 90T, 125T, 140T with 8, 12 and 16 connection holes. It's widely used in aquaculture cage mooring system, kelp cultivation mooring grid and other mooring system with multi mooring legs
Detailed Photos
Productive process and workshop:
Our inspection:
We have mechanical laboratory covers an area of 1000 square meters, equipped with 6300KN multi-function tensile testing machine, Spark-OES, Metallurgical micropscope, universal testing machine, automcatic impact testing machine, salt spary test machine, by testing materials, microstructure, mechanical properties and product functions, the quality is guaranteed to meet the standard requirements. Our laboratory is internation CNAS certified.
We ensure that each batch of products will provide you with detailed inspection photos or videos.Product Parameters

Stock No.	MBL(T)	Thickness(MM)	Weight(KG)	Number of holes
HSM030615001	60	26	60	12
HSM030615002	90	40	125	12
HSM030615003	150	70	230	16

Certifications
Haosail will provide Mill cert and inspection report and steel material quality certificate for each goods. Packaging & Shipping
Company Profile
Qingdao Haosail machinery Co., Ltd is a Chinese company that specializes in synthetic solutions for the Offshore oil&gas, Marine, Aquaculture industries. From marine deck equipment, moorings solution to hardware to lifting slings Haosail has the answer.
We have combined experience on Overall project design, resource integration and quality control backed up by continuous successes and sound engineering experience and input. We can do product design and complete set of connecting design to meet client's requirement, by given usage environment, tensile and construction requirement and etc.We have participated in the design and provision of overseas Marine engineering, dock anchorage mooring project products, dock dock ship repair supporting products, etc.
At the same time,reliability in the marine and mooring industry have enabled Haosail to build up a superior network of factories and contractors that Haosail can offer throughout the Oceanic region.
Haosail can supply a range of products:
√ Anchor, Anchor Chain and accessaries
√ Marine Deck Fittings(Chock, Bollard, Fairleader and etc)
√ Mooring Rope and connecting plates/rings
√ Mooring Buoy
√ Mooring systems
√ Heavy Lift Synthetic Slings
√ Deck and Quayside Fittings
Our Advantages
Haosail's Supply Chain Management Team, Quality Management System and kinds of Testing Equipments ensure complete confidence in the products and services provided, and to ensure customer satisfaction.
√ Getting things right first time
√ Know kinds of factory well, know their production capacity and advantages, resource allocation, can quick response to all kinds of problems.
√ Develop product cost model independently, get hold of product cost composition
√ Overall optimization design, reduce the cost and the risk
√ Offer products and services that are better in quality or performance than those offered by the competition
√ Customer specifications strictly observed and fulfilled.
We can Technical Design:
Our team have a depth of technical ability and knowledge gained through many years of experience in lifting, rigging and safety. We can provide common lifting design, heavy work lifting design, and can non-standard product lifting design to meet customer needs.
We can do Training:
In order to better serve customers, our company specially organized professionals to carry out training in lifting design, lifting product introduction and use, and lifting product maintenance.
FAQ
Q:What problems should be paid attention to in the construction and maintenance of offshore mooring design?
A:1. In terms of construction:
Preparation before construction: Before construction, the design drawings should be reviewed in detail to ensure that the construction personnel understand the design intention, and the construction sea area should be surveyed again to confirm whether the site conditions are consistent with the design expectations. Prepare the equipment and materials required for construction, such as windlass, pile driver, mooring cable, etc., and check whether its quality and performance meet the requirements.
Construction process control: Operate in strict accordance with construction specifications and design requirements to ensure the installation accuracy of mooring equipment. For example, the positioning deviation of the anchor should be controlled within the allowable range to ensure the uniform force of the mooring system. The tension of the mooring cable should be adjusted according to the design value to avoid too loose or too tight. During the construction process, it is necessary to monitor the weather and sea state changes in real time, and in case of bad weather, the construction should be stopped in time and corresponding protective measures should be taken.
Construction safety management: the offshore construction environment is complex and the safety risk is high. Construction personnel must be equipped with complete safety protective equipment, such as life jackets, helmets, etc. Establish a sound safety management system, strengthen safety education and training for construction personnel, and improve safety awareness. Set up obvious safety warning signs to prevent unrelated vessels from entering the construction area.
2. Maintenance:
Regular inspection and maintenance: Develop a scientific and reasonable maintenance plan, and regularly conduct a comprehensive inspection of the mooring system. The contents of the inspection include whether the mooring cable is worn, broken, corroded, etc., whether the anchor and chain are loose and damaged, and whether the connecting parts are firm. If the problem is found, repair or replace it in time.
Equipment maintenance: Regular maintenance of mooring equipment, such as lubrication and debugging of the anchor machine, anti-corrosion treatment of the mooring cable, etc., in order to extend the service life of the equipment and ensure its stable performance.
Monitoring and evaluation: The use of advanced monitoring technology, such as sensors to monitor the force of the mooring system, the displacement of the facility and other parameters, and the monitoring data analysis and evaluation. Based on the evaluation results, adjust maintenance policies in time, discover potential security risks in advance, and take appropriate preventive measures.

---
