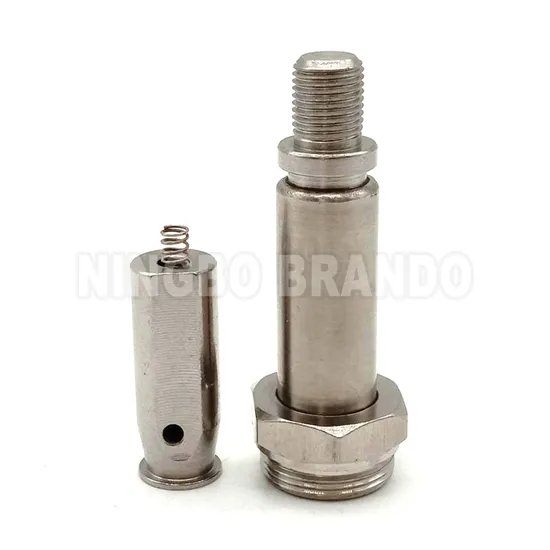

2 Way Normally Closed NC Solenoid Valve Armature With Stainless Steel Plunger Tube And Iron Core For 0543 0545 Solenoid Coil

Product Description

Product DescriptionA solenoid valve is an electrically controlled valve that shuts off or allows fluid flow from one point to the other. The valve consists of 3 main components: a solenoid coil, a solenoid armature and a valve body.
Solenoid Coil consists of several turns of enameled wire, taking a cylindrical shape and hollow from the inside. When current flows through the coil, a corresponding magnetic field is produced.
Solenoid Armature is the pressure-tight internal part of a solenoid valve. We produces its components from round material in brass, as well as from stainless steel using diverse alloys. The selection of the sealing material (elastomer) is always based on the operating and ambient conditions of the application.
Technical Data

BRANDO Model	BAPC214548001
Plunger Tube Material	Stainless Steel
Seal Material	NBR, EPDM, VITON
Connection Type	M20X1 Thread
Function	2 Way Normally Closed

BRANDO Model	BB14542004
Reference Number	0543
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power	13W, 14W, 15W, 20W, 15VA, 22VA
Other voltage and power can be customized
Connection Type	DIN43650A
Insulation Class	F, H

BRANDO Model	BB14542505
Reference Number	0545
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power	14W, 20W, 18VA, 25VA, 28VA
Other voltage and power can be customized
Connection Type	DIN43650A
Insulation Class	F, H

More Solenoid OperatorsDifferent Applications
Different Coil Hole ID, Different Plunger Tube OD
Production ProcessSolenoid Armature Production Process
Solenoid Coil Production Process
