Product Details
Product Description
Product Description
Brand:A-B

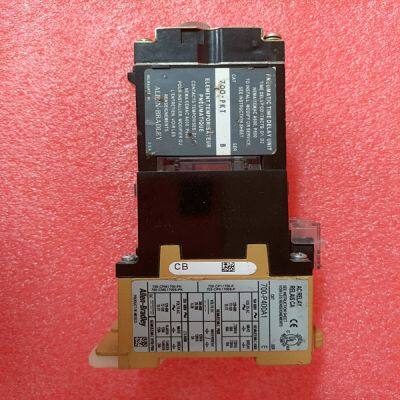

Type:700-PKT/B
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
The baseplate contains only passive elements. It holds the input and output connectors for the CEX-Bus, a slot for the CI862 unit, a port used for the Genius Bus Hand Held Monitor, a high speed serial port used for module redundancy link communications and a port for the TRIO Field Bus connection.
CI862 contains the Coldfire MCF5307 Microcontroller with Flash memory, RAM, LED indicators, power supply, and CEX-Bus interface with dual port memory, bridged to a GE/Fanuc µGenie Communication Module. The µGenie handles all data transfer between the CI862 Carrier module and the TRIO FIELD BUS, allowing the Carrier CPU to control the remote I/O. Indicators LED indicators for R(un), F(ault), Communication Error, Primary (Bus Master), and Dual (redundancy) Technical Data Table 95. TRIO/Genius interface CI862 Item Value Bus Type Daisy-chained bus cable; single twisted pair plus shield or Twinax. Protocol similar to the RS422 standard Communication speed 153.6 ext, 38.4, 76.8, 153.6 std kbit/s Bus Capacity (one segment) Max 32 devices. 16 devices at 38.4 Kbaud. Includes CI862 and Hand-held Monitor. Bus Termination 75, 100, 120, or 150 ohm resistor at both ends of electrical bus cable. Maximum Bus Length 7500 feet at 38.4 Kbaud, 4500 feet at 76.8 Kbaud, 3500 feet at 153.6 Kbaud extended, 2000 feet at 153.6 Kbaud, standard. Maximum length at each baud rate also depends on cable type. Galvanic Isolation Yes Status Indicators Red LED for error Green LED for run Yellow LED for traffic Yellow LED for primary Yellow LED for dual mode Connector one 4 pin (connects TRIO FIELD BUS) one DB9S (male) (connects Hand-held Monitor) one DB9, female (connects CEX expansion bus) Current Consumption from CEX-Bus 24 V d.c. Typical 190 mA (max. 200 mA) Dimensions W 58 x H 165 x D 122 mm (W 2.3 x H 6.4x D 4.81 inches) Hot swap Supported
>>
