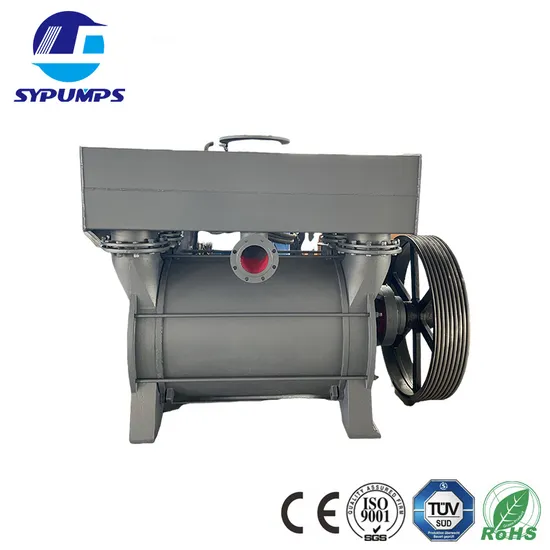

2bec Series Water Ring Vacuum Pump and Compressor, High Power, Long Service Life

Product Description

Shenyang liancheng pump co.,ltd.
============================
Vacuum Pump--water ring vacuum pump
OVERVIEW
The 2BEC series water ring vacuum pump and compressor are not only efficient and energy-saving, but also very suitable for long-term, continuous operation.
Operating under rough vacuum, the working conditions of liquid ring pumps are often harsh. The 2BEC series products have been designed with full consideration for the ability to extract various gases. It has been widely used in industries such as papermaking, coal mining, power plants, vacuum filtration, chemical, petrochemical, and food processing.
2BEC can be used in conjunction with various driving devices, such as belt drives, gearboxes, synchronous motors, frequency converters, etc. In addition, to save space, a series operation mode driven by one motor can be adopted, and four pumps can be operated in series simultaneously.
Performance range
Parameter Pumping capacity 80M3/min--1030M3/min
Power 90-1250KW,
Connect method:Belt or direct connect
Others see the product selection page for details

Ultimate Pressure:	33hPa-160hpa
Capacity:	80M3/min--1030M3/min
Voltage:	220V/380V/410V/460V/High Voltage
Frequency:	50Hz/60Hz

This is just part of parameter,for full ,pls send us email.

Type	Ultimate pressure hPa	Maximum gas capacity m3/min	Rotationa speed r/min	Transmission mode	Maximum shaft power Kw	Motor power Kw	Working fluid flowm3/h	Suction and exhaust diameter mm	Bareshaft Pump Weight Kg
2BEC 40	160	80	340	Belt / reducer	80	90	9.9	300	2930
		95	390		95	110
		110	449		115	132
		115	490		134	160
		124	530		148	185
		133	570		167	200
		143	610		189	220
2BEC 42	160	120	360	Belt / reducer	110	132	13.5	300	3360
		127	390		132	160
		142	440		157	185
		156	490		180	200
		169	530		204	220
		178	570		229	250
		193	610		260	315
2BEC 50	160	145	260	Belt / reducer	142	160	18.3	350	5440
		169	300		171	200
		190	340		203	250
		212	380		238	280
		230	420		277	315
		258	470		338	400
2BEC 52	160	178	260	Belt / reducer	172	200	22.2	350	6000
		205	300		210	250
		233	340		245	280
		257	380		288	315
		280	420		337	400
		312	470		412	500
2BEC 60	160	211	230	Reducer	205	250	25.4	400	8200
		240	260		243	280
		266	290		285	315
		291	320		322	355
		316	350		365	450
		360	400		465	560
2BEC 62	160	260	230	Reducer	250	280	30.9	400	9100
		295	260		300	355
		325	290		340	400
		355	320		390	450
		386	350		450	500
		436	400		570	630

2BEC 67	160	305	210	Reducer	280	315	36.4	500	11390
		340	240		350	400
		386	270		415	450
		425	300		465	560
		462	330		545	630
		516	370		670	800
2BEC 72	160	365	190	Reducer	345	400	43.5	500	14150
		405	210		395	450
		458	240		475	560
		509	270		550	630
		563	300		642	710
		635	340		795	900
2BEC 80	160	540	210	Reducer	515	560	55	600	18500
		580	225		590	630
		620	240		670	710
		660	255		750	800
		700	270		840	900
		750	290		930	1000
2BEC100	160	800	155	Reducer	730	800	80	700	31000
		855	165		840	900
		905	175		900	1000
		990	190		1000	1120
		1030	200		1140	1250

This is just part of parameter,for full ,pls send us email. Main feature
The main structural features of the 2BEC series water ring vacuum pump and compressor produced are as follows:
-There are large inspection ports on both sides of the pump cover, which can be used to check the clearance, corrosion condition, and scale accumulation.
-The 2BEC vacuum pump is manufactured with both top and side suction and exhaust flanges reserved, and has the same diameter, making on-site installation more flexible and convenient.
-All bearings are imported with original equipment, ensuring high stability during the positioning and operation of the impeller of the 2BEC vacuum pump.
-The impeller material is all cast with ductile iron or welded with steel plates and stainless steel plates, fully ensuring the stability of the 2BEC vacuum pump impeller under various harsh working conditions and greatly improving the service life of the 2BEC vacuum pump.
-The pump body is entirely made of steel plates or stainless steel plates, which improves the service life of the 2BEC vacuum pump-
Material select
According to different medium liquids, normally Cast iron,304,316,2205,2507,titanium.
More pictures
For more details, pls contact with us!

---
