Recycled Plastic Granule Extruder Machine

Product Description

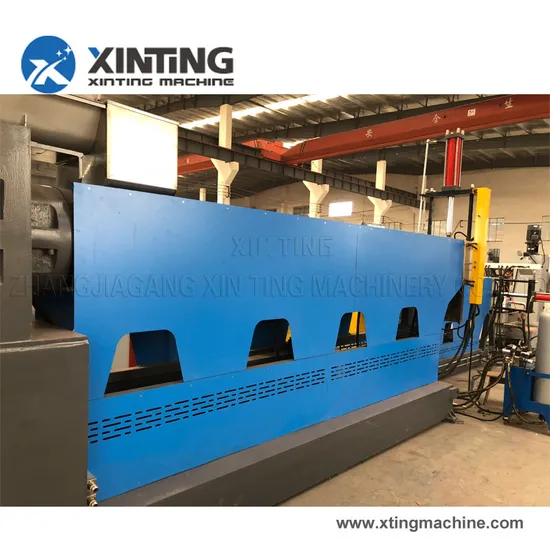

Double Stage Water Ring Plastic Film Pelletizing Machine
Plastic recycling pelletizing machine/line summary:
1.Waste Plastic film / bags after washing recycling ,we can use this machine to making plastic granules.New granules After Blow molding or Injection ,it can be used to making new plastic product.Such as plastic film,plastic bags,plastic bottle,plastic pallet,plastic box,plastic barrel etc.
2.this machine suit for PE PP HDPE LDPE LLDPE
3.We supply single stage or double stage (Mother and baby type).
4.The line using tocuch screen contrlo system
PE PP Film/bags flakes extruder layout:
1.Conveyor belt → 2.Semi automatic metal detector →3.Compactor force feeder→4.The first stage extruder→5.Without Wire mesh filter hydraulic changer(it can increase 10% capacity than normal hydraulic chnager,but the total cost will be increased,we usually use normal hydraulic changer)→6.the second stage extruder →7.normal hydraulic changer →8.Die face cutting system→9.Water cooling tank→10.Centrifugal dewatering machine→11.Vibrator screen machine→12.Air conveyor & Storage silo
Main parameters PP/PE plastic granules/pellets making machine:

Extruder	SJ85	SJ100	SJ130	SJ160
Screw diameter	85mm	100mm	130mm	160mm
Main motor	55kw	90kw	132kw	160kw
Compactor power	37kw	55kw	75kw	90kw
Capacity	100-180kg	200-300kg	300-400kg	500-600kg

---
