1bq -3.4 Light-Duty Disc Harrow

Product Description

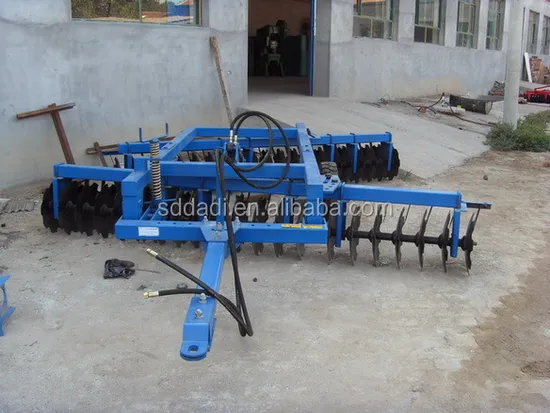

Hydraulic 1BQ-3.4 Light-duty Disc Harrow
1BQ series Discs Off-set Light-duty disc harrows front and rear gangs are all assembled with plain disc,Rated power is 604 wheel tractors and the larger class tractors. Moreover. Model 1BQD-6.6 disc harrow's folded wings make the working width wider and transportation width narrow. Fitted with hydraulic lifting rubber wheels and spring adjusting devices and roller bearing assemblies. They're convenient for transporting. Reverse radius is smaller. And it's easy to be adjusted and maintained. It's advanced in China at present.
Disc harrow,light disc harrow,disc harrow factory,disc harrow in China,high quality disc harrow,farm disc harrow
Warranty :12 month
The series Light-duty Disc Harrow frame are made of qualified steel tube, Their structures are simple and reasonable, strong and durable, convenient to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth.All these satisfy the agricultural requirements of intensive cultivation.
The 1BQX series suspension Light-duty Disc Harrow's front and rear gangs are all assembled with scalloped disc, could be used with from 12HP to 80HP type tractors.
Technical criteria:

Model	1BQ-3.4	1BQ-4.4	1BQ-5.0
Overall size (mm)	5360*3550*1050	5820*4600*1050	5820*5200*1050
Weight (Kg)	1108	1520	1620
Working width (M)	3.4	4.4	5.0
Working depth (mm)	80-140
Qty.Of discs	42	54	60
Dia.Of disc (mm)	460
Thickness of disc (mm)	3
Disc spacing (mm)	170
Productivity (Ha/h)	1.72	2.45	3
Linkage	Trailed
Matched Power (Hp)	≥47.7	≥55	≥58.8

---
