Tubular Purification Separation Centrifuge Machine Selling in China

Product Description

Main structure of the tubular centrifuge:
The machine is composed of main body, transmission device, drum, liquid collecting tray, and liquid-feeding bearing base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Through the conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density.
Type of the tubular centrifuge:
GF model: Liquid with big density forms the outer liquid circle, while liquid with small density forms the inner circle. Then liquid will flow out of the upper outlet accordingly, and those little solid will be deposited on the drum wall, and be removed by manual after machine stops.
GQ model: Solid particles with big density are gradually deposited on the drum's inner wall, and forms sediment layer, after machine is stopped, is removed by manual. While the clarified liquid flows out through the outlet on the upper of the drum.
Working Principle Of tubular centrifuge
The Stainless Tubular Centrifuge of machine body, driving part, bowl, liquid collecting pan and liquid-in bearing seat etc.
The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifuge force.
Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
Applications Of tubular centrifuge:
It is mainly used for the liquid liquid separation or liquid liquid solid separation. For examples:
1) Separation of blood (plasma and hemoglobin separation)
2) Vegetable and animal oil separation (vegetable oil degum, de-soap, fish oil polishing
3) sea buckthorn oil, essential orange oil, essential rose oil etc extraction and separation
4) Waste water handling, waste oil treatment
5) milk separation, coconut oil separation
Technical paramter of the tubular centrifuge:

Item		GQ/GF75	GQ/GF105	GQ/GF125		GQ/GF150
Drum	ID(mm)	75	105	125		147
	Height (mm)	450	730	730		730
	Sedimentation volume(L)	2.67	6	8		10
	Max speed(r/min)	21000	17500	16500		15800
	Max separation factor	22500	18500	17300		16800
	Inlet nozzle diameter (mm)	3/4/6	4/6/8	6/8/10		8/10/12
	Material inlet pressure (Mpa)	≥0.05
	Capacity (water capacity)L/H	670	1600	2200		3200
	Actually Capacity L/H(according to the solid content)	50-80	100-200	200-300		300-700
Motor model		3 phase two pole motor
Motor power (kw)		1.5	2.2		3		3
Machine dimension (mm)		500*700*1300	600*1000*1600		600*1000*1600		600*1000*1600
Machine weight (kg)		300	460		490		510

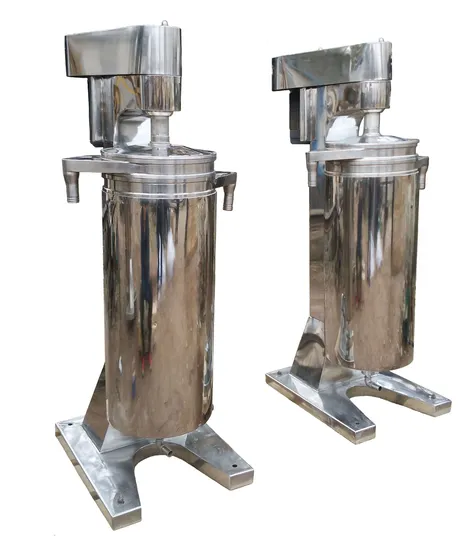

Products pictures:
FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you ASAP.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.

---
