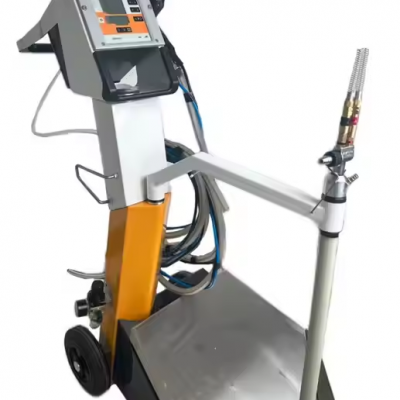

Central Machinery Powder Coating System Wagner Powder Coating powder coating equipment
Voltage
| 100~240VAC
|
Frenquency
| 50/60HZ
|
power
| 50W
|
Safety Level
| IP54
|
Ambient Temperature
| 0-40°C
|
Input Air pressure
| 0.55MPa(5.5bar,80PSI)
|
Maximum powder injection
| 600g/min
|
Gun weight
| 480g
|
Maximum Output Voltage
| 120kv
|
Maximum Output Current
| 120µA
|
The length of Powder Tube
| 3.5meters
|
Accessories included in the machine
| Quantity
|
Gun
| 1 SET
|

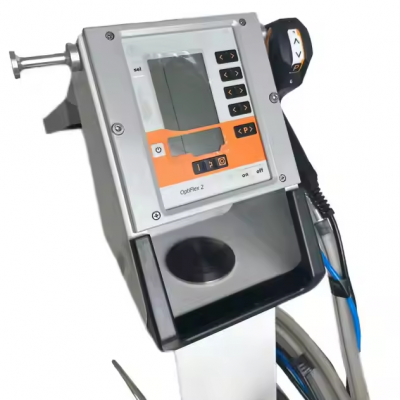

Controller
| 1 SET
|
Low Temperature Soft Powder Pipe
| 1 SET /3.5Meters
|
Vertical Powder Pump
| 1 SET
|
Stainless Steel Barrel
| 1 SET /40L-45L
|
Overflow Pipe
| 1 SET
|
Movable Trolley
| 1 SET
|
Oil and Water Separator
| 1 SET
|
Consumables
| Some
|
Net weight of machine
| 40KG
|
package Size ,Weight
| 500mm(L)*500mm(W)*1020mm(H), 45-50KG
|
