Plastic Film Recycling Paper Wood Crusher Machine Shredder Machine

Product Description

Product Description

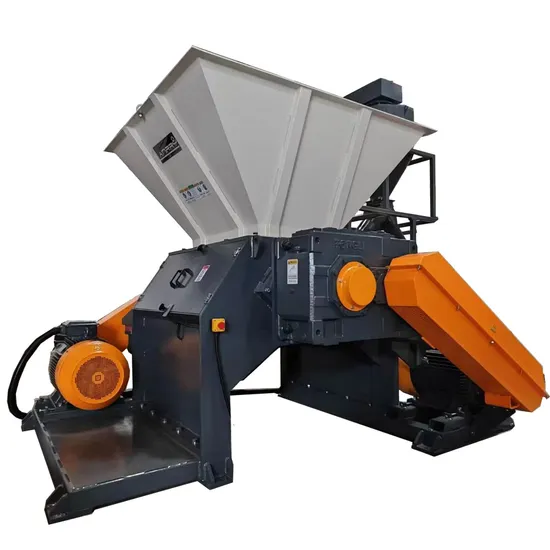

The WT series single shaft shredder is suitable for recycling wide range of materials. It is an ideal machine for plastic, paper, fiber, rubber, organic waste and a wide variety of materials. As per our customers' requirements, such as the input size of the material, capacity and the final output size etc, we could work out a suitable proposal for our clients. After being shredded by the machine, the output material could be used directly or go into the next step of size reduction. With the function of Siemens microcomputer control system, it is possible to control automatically start, stop, automatic reverse sensors to protect the machine against over loading and jamming.

SMALL SINGLE SHAFT SHREDDER

Item Model	WT2250	WT2260	WT3060	WT3080
Dimension L/W/H(mm)	1780×1190×1754	1780×1190×1754	2455×1478×1700	2455×1478×1700
Cutting Chamber C/D(mm)	857×502	857×602	1200×600	1200×800
Height of discharge port H(mm)	546	546	500	500
Cylinder Stroke (mm)	500	500	750	750
Rotor Diameter (mm)	φ224.7	φ224.7	φ300	φ300
Main Shaft Speed (r/min)	83	83	83	83
Screen Mesh (mm)	φ25	φ25	φ40	φ40
Rotor-knives(pcs)	24+4	28+4	30+4	42+4
Stator-knives (pcs)	2+2	2+2	2	2
Main Motor Power (kw)	15	18.5	22	30
Hydraulic Motor Power (kw)	2.2	2.2	2.2	2.2
Weight (kg)	1300	1400	1550	1950

MEDIUM SHINGLE SHAFT SHREDDER

Item Model	WT4080	WT40100	WT40120	WT40150
Dimension L/W/H(mm)	2825×1747×1875	2825×2004×1875	2825×2564×1875	2825×2964×1935
Cutting Chamber C/D(mm)	1410×800	1410×1000	1410×1200	1410×1500
Height of discharge port E(mm)	500	500	500	560
Cylinder Stroke (mm)	900	900	900	900
Rotor Diameter (mm)	φ390.9	φ390.3	φ390.3	φ390.3
Main Shaft Speed (r/min)	74	74	74	74
Screen Mesh (mm)	φ40	φ40	φ40	φ40
Rotor-knives(pcs)	42+4	54+4	66+4	90+4
Stator-knives (pcs)	2	2	2	3
Main Motor Power (kw)	37	45	55	75
Hydraulic Motor Power (kw)	2.2	2.2	5.5	5.5

Item Model	WT48150	WT48200	WT48250
Dimension L/W/H(mm)	3135×2968×2105	3255×4415×2720	3255×4615×2720
Cutting Chamber C/D(mm)	1650×1500	1450×2000	1560×2500
Height of discharge port E(mm)	600	950	950
Cylinder Stroke (mm)	1000	950	950
Rotor Diameter (mm)	φ464.8	φ464.8	φ464.8
Main Shaft Speed (r/min)	74	74	74
Screen Mesh (mm)	φ40	φ40	φ40
Rotor-knives(pcs)	90+4	114+4	144+4
Stator-knives (pcs)	3	4	5
Main Motor Power (kw)	90	75+75	90+9
Hydraulic Motor Power (kw)	5.5	7.5	7.5
Weight (kg)	7800	10000	12000

HEAVY-DUTY SINGLE SHAFT SHREDDER

Item Model	WT66150	WT66200	WT66250	WT66300	WT66400
Dimension L/W/H(mm)	4100×3450×3000	4100×3950×3000	4100×4450×3000	4100×6800×3000	4100×6800×3000
Cutting Chamber C/D(mm)	1885×1500	1885×2000	1885×2500	1855×3000	1855×4000
Height of discharge port E(mm)	1020	1020	1020	1020	1020
Cylinder Stroke (mm)	1000	1000	1000	1000	1000
Rotor Diameter (mm)	φ660	φ660	φ660	φ660	φ660
Main Shaft Speed (r/min)	75	75	75	75	75
Screen Mesh (mm)	φ40	φ40	φ40	φ40	φ40
Rotor-knives(pcs)	126+4	158+4	225+4	291+4	363+4
Stator-knives (pcs)	3	4	5	6	8
Main Motor Power (kw)	75+75	90+90	110+110	132+132	160+160
