Guide Rail High Frequency Hardening Integral Bed Cw61100 Heavy Duty Hand Lathe

Product Description

Overview

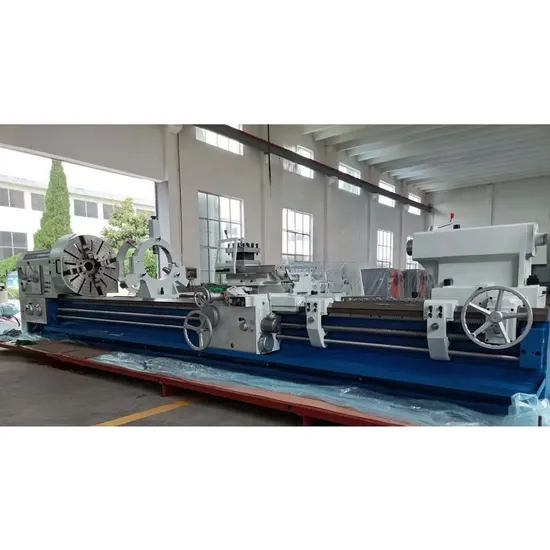

CW SERIES ENGINE LATHE-CW61100 Manual Lathe Machine
Integral machine bed adopts high strength iron to realizehigh rigidity and precision.
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance.
Headstock gears hardened and precision ground to achieve high precision and low noise. Standard configuration
3-jaw chuck(Ф315mm) 4-station manual toolpost
Work lamp
Coolant system
Standard safety cover
Tail stock
Pad iron
Tool box
Operation manual
Optional configuration
Follow rest Center rest
Digital readout
Grinding attachment
Protective cover (lead-screw, chuck, tool post)

Specifications

Specification	CW61100
Max. swing over bed	1000mm
Max. swing over cross slide	680mm
Center distance	1500/2000/3000/4000mm
Bed width	600mm
Max. load capacity	4T
Spindle bore	104mm
Spindle bore taper	Metric φ120/MT5
Spindle nose type	A2-11
Spindle speed steps	FWD. 18 steps
Spindle speed range	5.4-720rpm
Chuck	φ315-3-jaw manual
Turret/ tool post	Manual turret 4 position
Tool shank size	30*30mm
X travel	420mm
Z travel	1350/1850/2850/3850mm
X axis feed grade/range	64/0.05-0.912mm/r
Z axis feed grade/range	64/0.1-24.3mm/r
X axis rapid traverse	2300rpm
Z axis rapid raverse	4000rpm
Tailstock quill diameter	φ100
Tailstock quill taper	MT5
Tailstock quill travel	250mm
Main drive motor	11kw
Coolant pump motor	0.125kw
Machine Weidth*Height	1750*1750mm
Machine Length	4000/4500/5500/6500mm
N.W.	5300/5700/6400/7100kg

Packaging & Shipping
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
