Cryogenic Deburring Machine Model Pg-60t with 60liter Barrel Capacity

Product Description

SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-60T

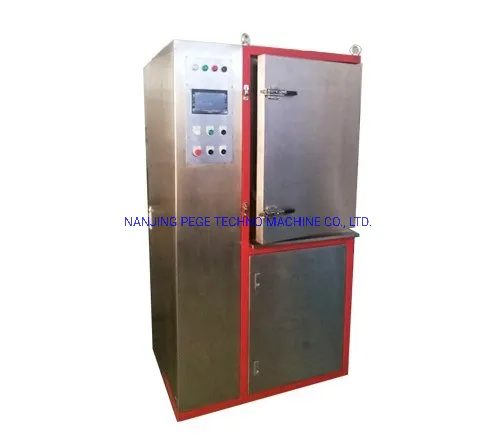

MACHINE PHOTO
SIZE(L*W*H)	1000*1000*1950MM
WEIGHT	700KG
POWER	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph
TEMPERATURE	-130 - +50ºC
PRESSURE	0.5-0.7Mpa
BARRAEL CAPACITY	60L
EFFECTIVE CAPACITY	20L
WHEEL SPEED	3000rpm - 7200rpm
COOLING MEDIA	Liquid Nitrogen
OPETATION MODE	Touch Screen
FRAME	SUS304
WHEEL DIAMETER	AL φ250mm
BLASTING SPEED	105.7m/s

PRODUCT DESCRIPTION
PROCESSING PRINCIPLE
With the decrease of the temperature, rubber/plastic parts enter into hardened, brittle, and crystallized process, its flexibility is gradually lost. It is easily broken by external force when it is under brittle temperature. Flash of the molded products is generally much thinner than finished product itself, it become brittle earlier than product in the low temperature. Cryogenic deflashing machine applies this principle, works in the time range when flash is brittle while products still keeps its flexibility, hit the flashes by high speed projected special plastic media, clear out the brittle burr. The flashes can be easily removed, and the product not be damaged.
FUNCTIONS
Our machine is widely used in removing the flashed of small rubber and plastic parts like O-rings, gaskets and other molded parts.
With the cryogenic processing technology, the flashes are firstly freeze and then shot down the high-speed projection media (Polycarbonate blast). The surface quality of molded rubber and plastic rubber parts can be improved greatly.
APPLICATIONS
A. O rings, irregular rubber parts with different material and sizes.
B. Micro electronic product parts
C. Precision elastomeric parts
D. Precision injection moulding plastic parts
E. R & D part runs
F. Die casting products, like zinc aluminum, magnesium alloy
FEATURES
High efficiency: The machine can replace about 60-80 worker to removing the flashes.
High precision: It can remove small and hardened flashes which cannot be removed by handworkers and improve precision of the products.
Low cost: It also has a feature of lower cost comparing with processing the parts by handworkers.
