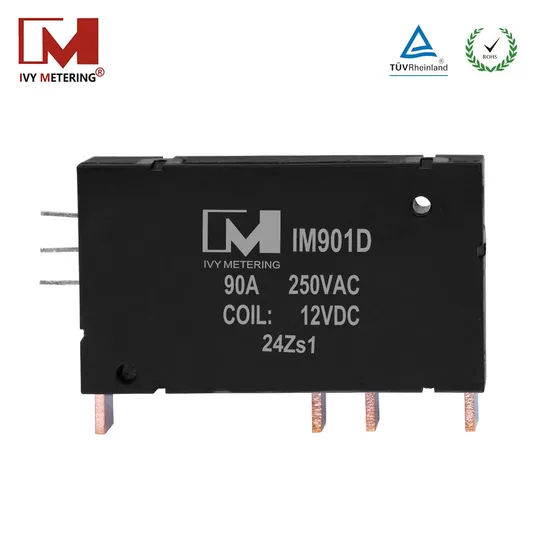

IVY Factory Direct Stable Bistale Relais 2 Phases 80A 90A 12VDC Coil Latching Relay

Product Description

Parameter Category	Parameter	Value/Specification
General Parameters	Main Dimensions	60 * 34.5 * 19 mm
	Weight	80g (excluding peripheral accessories)
	Operating Temperature	-40 to +85 °C
	Operating Humidity	45% to 95% RH
Contact Parameters	Contact Material	AgSnO2
	Contact Form	2A or 2B (2 sets of Normally Open or Normally Closed)
	Contact Resistance	≤ 0.8 mΩ (initial value, @DC 6~24V, 1A)
	Maximum Switching Current	90A
	Maximum Switching Voltage	250VAC
Performance Parameters	Rated Coil Voltage	DC 6, 9, 12, 24V
	Pulse Duration	100ms ~ 200ms (recommended)
	Rated Coil Power	2.5W (single coil), 5W (dual coil)
	Pick-up Time	≤ 30ms
	Release Time	≤ 30ms
	Electrical Life	10,000 operations (purely resistive load, 90A 230VAC)
	Mechanical Life	100,000 operations
	Insulation Resistance	1000 MΩ (500VDC)
	Coil to Contacts	4000VAC, 50/60Hz, 1 min
	Between Different Contact Groups	4000VAC, 50/60Hz, 1 min
	Across Open Contacts of Same Group	2000VAC, 50/60Hz, 1 min
	Short-Circuit Current Withstand	4500A (50/60Hz), ~10ms (non-explosive)
	Shock Resistance (Functional)	100 m/s² (10G)
	Shock Resistance (Destructive)	1000 m/s² (100G)
	Vibration	1.5mm (double amplitude), 10~55Hz

Cautions of Latching Relay:
1.Suggestions of relay's input
(1)Polarity-Please check the polarity inside of our technical specification, if single coil then"+ -" or "- +"are fine, you can change it by one pulse.If double coil then it's necessary to confirm "-+-" or "+-+"before leaving the our factory. (2)Driving-Please energize the relay at our recommend pulse width, rated voltage for reliable performance, if 1.5 times or 2 times of value or lower driving condition plz confirm with our engineer.
(3)Relays'contact status may be changed during transportation or installation due to impact of external force,
therefore please reset to the required status. 2.Suggestions of relay's output
(1)When choosing the relay with hard connection,please avoid the external force on load terminals during or after the installation. (2)When the relay will be connected with screw or bolts to the relays' terminals, plz make sure your connection is fastened and prevent relay from damages or other safety problems due to temp. Rise.. (3)The sampling signal wires of products are limited, please do not pull or torque during installation.

---
