Pg-120t Cryogenic Deflashing&Deburring Machine (120Liter) for Deflashing

Product Description

PG-120T Cryogenic Deflashing&Deburring Machine (120Liter) for Deflashing
Product Description
PROCESSING PRINCIPLE
With the decrease of the temperature, rubber/plastic parts enter into hardened, brittle, and crystallized process, its flexibility is gradually lost. It is easily broken by external force when it is under brittle temperature. Flash of the molded products is generally much thinner than finished product itself, it become brittle earlier than product in the low temperature. Cryogenic deflashing machine applies this principle, works in the time range when flash is brittle while products still keeps its flexibility, hit the flashes by high speed projected special plastic media, clear out the brittle burr. The flashes can be easily removed, and the product not be damaged.
Product Feature
FUNCTIONS
Our machine is widely used in removing the flashed of small rubber and plastic parts like O-rings, gaskets and other molded parts.
With the cryogenic processing technology, the flashes are firstly freeze and then shot down the high-speed projection media (Polycarbonate blast). The surface quality of molded rubber and plastic rubber parts can be improved greatly.
Product Specification / Models
APPLICATIONS
A. O rings, irregular rubber parts with different material and sizes.
B. Micro electronic product parts
C. Precision elastomeric parts
D. Precision injection moulding plastic parts
E. R & D part runs
F. Die casting products, like zinc aluminum, magnesium alloy
Our Advantages
FEATURES
High efficiency: The machine can replace about 60-80 worker to removing the flashes.
High precision: It can remove small and hardened flashes which cannot be removed by handworkers and improve precision of the products.
Low cost: It also has a feature of lower cost comparing with processing the parts by handworkers.
SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-120T

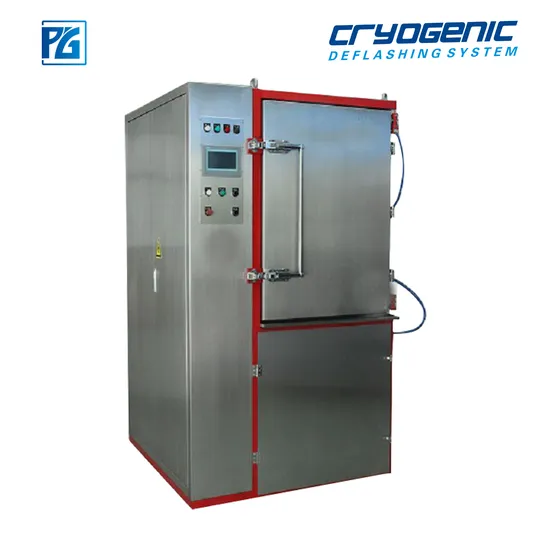

MACHINE PHOTO
SIZE(L*W*H)	1200*1250*2200MM
WEIGHT	1000KG
POWER	Ac380v 50Hz
ELECTRICTY	8Kw*3Ph
TEMPERATURE	-130 - +50ºC
PRESSURE	0.5-0.7Mpa
BARRAEL CAPACITY	100L or 120L
EFFECTIVE CAPACITY	40L`
WHEEL SPEED	3000rpm - 7000rpm
COOLING MEDIA	Liquid Nitrogen
OPETATION MODE	Touch Screen
FRAME	SUS304
WHEEL DIAMETER	AL φ350mm
BLASTING SPEED	143.3m/s

OPERATION PROCESS
FEATURES
High efficiency: The machine can replace about 60-80 worker to removing the flashes.
High precision: It can remove small and hardened flashes which cannot be removed by handworkers and improve precision of the products.
Low cost: It also has a feature of lower cost comparing with processing the parts by handworkers.
Installation Instructions MACHINE PICTURES
OUR FACTORY AND WORKSHOP
WORKSHOP
Successful Installations
POLAND AND USA CUSTOMERS INSTALLATION.

Country Shipped

Local Installations

---
