Portable Handheld Laser Marking Machine Small Fiber Ring DIY Bracelet Necklace Color Laser Engraving Machine Stainless Steel Metal Hardware Marking Machine

Product Description

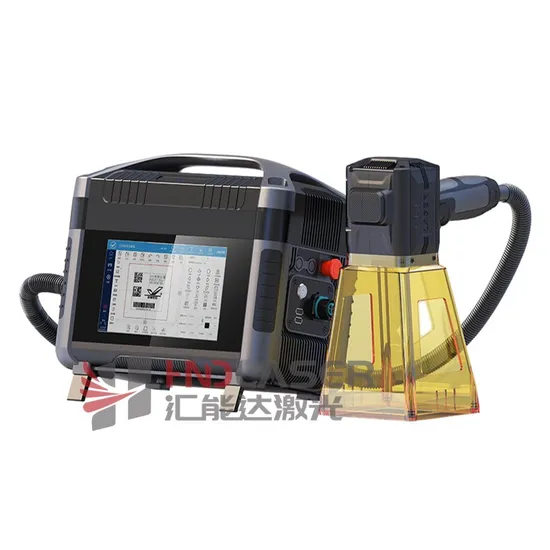

Mini Handheld Fiber Laser Marking Machine
(Can be customized to your needs)
The handheld laser marking machine has the characteristics of large-capacity battery, long battery life, multiple marking ranges, multiple power options and an 8-inch touch screen. It is indeed a very convenient and efficient marking device.
1.Equipment features
Large-capacity battery: Built-in large-capacity battery ensures that the device can work continuously for up to 8 hours without external power supply, suitable for outdoor and mobile marking needs.

Long-lasting battery life: Efficient battery management system and low power consumption design enable the device to run for a long time, reducing the trouble of frequent charging.

Lightweight design: The device weighs only 6KG, which is easy to carry and operate, suitable for scenes that require frequent movement or long-term handheld operation.

Multiple power options: Different power options are provided, and users can choose the appropriate power according to specific marking needs to meet various applications from light marking to deep engraving.

8-inch touch screen: The large-size touch screen provides a friendly user interface, simple and intuitive operation, and convenient and quick setting of marking parameters and real-time monitoring of the marking process.

NO.	Project	Parameter
1	Model number	HF10XX-H
2	Laser power	20W/30W/50W (Optional)
3	Laser level	Class IV (IEC 60825-1)
4	Laser type	Pulse Fiber Laser
5	Wavelength	1064nm
6	Marking field	70*70/100*100/150*150mm (optional)
7	Marking depth	≤0.01mm
8	Marking speed	≤10000mm/s(optional)
9	Marking line width	0.01-0.2mm
10	Min character size	0.015mm
11	Repeat accuracy	0.01mm
12	Cooling method	Air-cooled
13	Laser source expected life	>100,000 hours
14	Standard user interface	8 inch touch display
15	Battery	Samsung battery 216Wh 24V (Optional)
16	Consumables	No
17	Temperature	0-45ºC
18	Power consumption	200 W
19	Electrical requirement	L/N/PE 100 - 240 VAC, 50/60 Hz

2. Better Performance than Standard Model

DIY Computer Configuration:
Empower your creativity and productivity by configuring your own computers. Select high-performance PCs or laptops to perfectly match and optimize the laser equipment performance to suit your specific requirements.

High Performance Computing Requirements:
With a cutting-edge 3D galvanometer, enjoy enhanced computing capabilities powered by advanced CPUs and GPUs. This ensures efficient management of intricate 3D graphics and models, delivering superior marking quality.

3. Wide Range of Applications
Offices and Studios:
Compact yet powerful, our laser marking station is specifically tailored for offices and studios. Seamlessly handle diverse small-batch and custom marking tasks with unmatched ease and efficiency.
Startups and Innovations
The ideal partner for startups and innovation hubs, maximizing space and cost-effectiveness. Swiftly adapts to various marking demands, supporting agile production and rapid prototyping with ease.
Research and Teaching:
A crucial tool in research and education, facilitating lab projects, student experiments, demonstrations, and training courses in academic settings with unparalleled reliability.
Outdoor Work:
With mobile power solutions, our station is perfect for in-field tasks from pickup trucks, vans, and more. It efficiently satisfies outdoor and on-site marking requirements, ensuring flexibility and reliability.

Materials		Reaction	Materials		Reaction
Metal	Stainless steel	√√	Plastic	PE	√
	Aluminum	√√		PP	-
	Anodized aluminum	√√		PVC	√√
	Brass	√√		PPR	√
	Coated metal	√√		ABS	√
	Copper	√		PET	-
	Gold, silver, nickel, platinum	√		Nylon	√
	Carbon steel	√√		MPP	-
	Titanium	√√		PC	-
Ceramics	Ceramic	√	Electrical and medical ceramic	Electrical and medical ceramic	√

Exceptional Reaction: √√ Admirable Reaction: √ Unsatisfactory Reaction: -

Advantages & Accessories

Related Type
Advantage
Non-consumable
Say goodbye to consumable replacement costs
Operates solely on electricity
A robust one-time investment
Maintenance-free operation
Eco-friendly and sustainable
Innovative ink-free technology
A solvent-free process
Enjoy an odorless operation
Non-toxic and safe to use
Non-corrosive materials
Energy-efficient systems
Minimally wasteful in operation
Ensures 100% resource utilization
Produces zero emissions
Delivers permanent and resilient markings
Precision-controlled indentation depth
Resistant to oxidation effects
No color degradation over time
Enhances traceability and tracking
Assured safety and reliability
APPLICATION

OPTIONAL ACCESSORIES
FOCUS AREAS
EXHIBITIONS AND FAIRS
PLANTS AND TEAMS
CERTIFICATION DISPLAY
Proudly certified by a renowned third-party organization, our machines are backed by a dependable warranty service. Should you need any assistance or support, our dedicated team is always at your beck and call.


COMPANY INFORMATION
ZHANGJAGANG HNDLASER TECHNOLOGY CO., LTD
HNDLASER HNDLaser Technology Co., Ltd. is a distinguished national high-tech enterprise, funded by HNDLASER Established in Zhangjiagang, we excel in seamlessly integrating research, development, production, and application of cutting-edge laser equipment. Our investment portfolio is robust, featuring Zhangjiagang HND Intelligent Equipment Co. and numerous other eminent enterprises.
Thanks to steady increases in annual R&D investments, our innovations have achieved notable market acclaim, ensuring a robust and stable production input across the entire laser industrial chain. HNDLASER is dedicated to a people-first, innovation-driven philosophy. We prioritize both technological advancement and talent cultivation, which fortifies our growing market presence and the respected reputation of our products.

FAQ
Q1: What is the warranty period like?
A1: During the warranty period, if any major parts (excluding consumables) develop issues, they will be replaced or repaired at no additional cost.
Q2: What payment terms do you accept?
A2: We accept a variety of payment methods including TT, Western Union, Paypal, LC, and Cash, among others.
Q3: Do you provide CE documents and other clearance documents?
A3: Certainly, we supply the original documents. Following shipment, you will receive the CE document, packing list, commercial invoice, and sales contract for an effortless customs clearance process.
Q4: If I am unfamiliar with the product usage upon receipt or encounter issues, how should I proceed?
A4: We offer a comprehensive user manual, enriched with illustrations and a USB disk for step-by-step learning. Furthermore, any machine updates will be provided monthly for your continued convenience.
Q5:How can I obtain a sample to verify the results?
A5: You are welcome to send us a sample, which we will test for you at no charge..
Q6: When will I receive a quote?
A6: Our expert team will respond to your inquiry within an impressive 12-hour window.

---
