Plastic Pyrolysis Euipment Recycling Plastic to Oil

Product Description

1. Plant Sepcification

Machine type	High oil rate
Daily capacity	10Ton
Working pressure	normal
Working Tem	0-500ºC
Machine weight	35000kgs
Voltage	380v
Power	21 kw
Ractor size	2600*6000mm
Working round area	600 square meters
Labours required	1
Reactor material	Q345R/stainless steel
Dedust system	High-class
Used for	Waste engine oil/waste lube/fuel oil
Out put	Base oil/diesel
Oil rate	70-85%
Feeding way	Auto and non-stop
Oil cooling way	Water cooling
Water consumption	500-1000kgs
Heating way	direct /indirect way
Heating fuel	Wool.coal,gas,oil

2.About oil rate for different material

Oil yied/day	Waste tire/ rubber	Big tyres	45%--50%
		Car tyres	40%
		Bicycles and motorcycles tyres	30%--35%
	Waste plastic	Fishing net	45%--50%
		Safety net , farm-oriented film
		Conwenient bags , weave bags	40%
		Off cut of recycled paper mill	20%--30%

3.Major parts

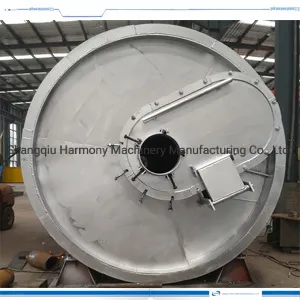

1.Reactor

2.Catalyst tower

3.Oil separator

4.Condenser cooling system

5.Cooling pool

6.Light oil collection tank

7.Heavy oil collection tank

8.Vacuum system

9.Water seal tank

10.Dust remove disposal device(strong spray tower,draft fan,active carbon absorption tower,purify water pool)

11.Operation plat form

12.Power Control cabinet

13.Other accessory

4.Work-flow
loading plastic into reactorheating reactor after heating , solid plastic converted to oil gasoil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling systemafter cooling ,light oil gas change to liquid oil and go into light oil tanknon-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuelsmoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
5.Other plant type

Specification	Capacity	Raw material	Heating material	Working time (hrs)	Shipped by
XHZT-2200-6000	5Ton	Waste tyres Cables Plastics Rubber Oil sludge	Wood,coal ,oil,gas	12	2*40HQ
XHZT -2600-6000	8Ton			15	1*40HQ+1*40FR
XHZT -2600-6600	10Ton			18	1*40HQ+1*40FR
XHZT -2800-6000	10Ton			18	1*40HQ+1*40FR
XHZT -2800-6600	12Ton			20	1*40HQ+1*40FR
XHZT -2800-6600	15ton	Medical waste		22	1*40HQ+1*40FR
Contiuous plant	20Ton	Other waste		24	3*40HQ
Contiuous plant	60Ton			24	5*40HQ

6.Plastic Oil Paramter

Density	g/cm3	0.83-0.87
Freezing Point	oC	10
flash point	oC	40
Kinematic viscosity	mPa.s	8
Combustion value	kJ/kg	9500

7.Payment term and delivery

Payment term	30% TT deposit ,balance paid before plant loading ,or sight LC
Delivery	With 15days after getting advance payment
Warranty period	2 years warranty period, life time maintenance
Installation	We send technician for guiding installation and training your workers for free.

---
