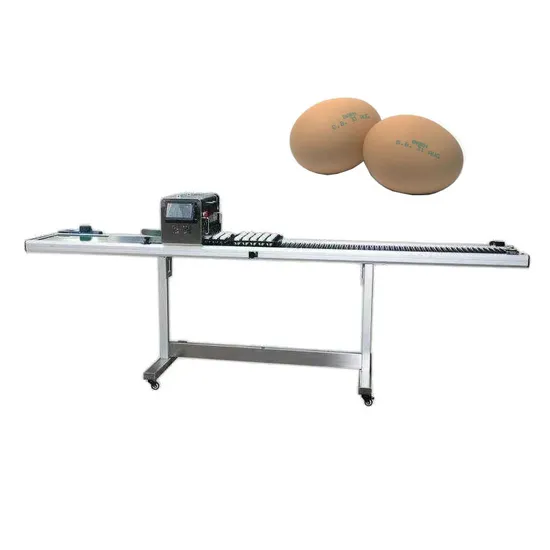

Fully Automatic High-Precision Zero-Breakage Egg Printer Egg Printing Inkjet Machine introduction:
The egg printer is a machine used to mark the basic information of the egg on the surface of the egg shell. The highest printing speed and the most comprehensive interface function of the egg printer enable it to be connected with various egg sorting and grading equipment to ensure high-speed and high-quality logo printing (including printing different information at different levels).
| Nozzle type: | Hot foaming |
| Number of nozzles: | 1 to 6 |
| Printing method: | Drop-on-demand |
| Printing accuracy: | 600*600DPI |
| Printing height: | 8.8mm |
| Ink cartridge form: | Integrated print head, one-time use, can print 200,000-250,000 |
| The shelf life of new ink cartridges is one year, | It should be used up within three months after opening the package |
| Ink color: | Magenta, dark green, purple blue, food grade ink |
| Ink certification: | Through SGS international certification, in line with FDA standards |
| language: | Simplified Chinese, Traditional Chinese, English, Korean, Common Characters |
| Font library | Ten models are installed at the factory, customers can download and import by themselves, |
| The system contains bitmap fonts | Optional |
| Printing capacity: | 40,000 to more than 100,000 per hour (as needed) |
| Graphics function: | There are various graphics and LOGO |
| Barcode function: | QR code, barcode |
| IMEI function: | 9 digits plus prefix and suffix (Chinese and English) optional |
| Nozzle cleaning function: | automatic / manual |
| Self-checking function of printing effect: | One-key operation, automatic printing of test patterns |
| Inkjet volume control: | 1-16 levels of inkjet volume control to adapt to different egg products and ambient temperature and humidity. Automatic statistics function: daily output (can be cleared) and cumulative output |
| Operating temperature: | 5-45 degrees Celsius |
| Whole machine power consumption: | Including motor less than 200W |
| Transport collection function: | 1.68 meters digitally adjustable speed conveyor belt, roller type collection section, photoelectric control automatic cut-off, body length 3.4 meters or 2.4 meters |
| Printing lift control: | Digital display, photoelectric limit, electric lift control, stroke 40mm, nozzle weight balance: adjustable differential spring balance device, effectively reduce mechanism vibration, and reduce the sliding ratio by a large proportion |
| Conveying device: | Self-adaptive anti-deviation conveyor belt with hidden tension adjustment device |
1. Printing quality
Clean, clear and consistent quality codes can be printed on various egg surfaces (including permeable surfaces and after oiling).
2. High-definition "low diffusion" coding ink
With smaller ink dots, large characters can be printed on the limited space on the eggshell surface and high color contrast can be maintained.
Faster drying time makes the ejected ink dots small, especially suitable for spraying large font characters in a limited space (such as 7X9 or higher fonts).
3. Anti-coagulation properties
When the egg product is transferred from a cold environment to a hot environment, when condensation occurs, it can maintain good coding quality-especially when condensation occurs just after spraying.
