Laboratory Water Purification System Water Filter, Micro-analysis Compound Ultra Pure Water Machine ZYDM Series

Product Details

Product Description

Product Description
Products Description

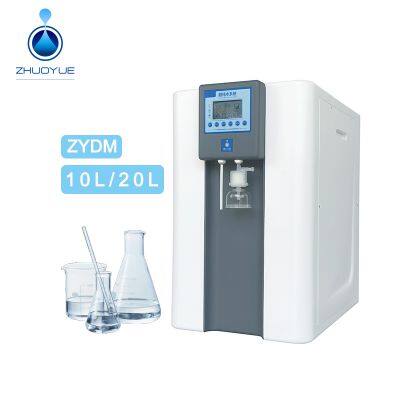

ZYDM Ultrapure Water Machine
ZYDM is multi-function ultrapure water machine with PLC operation and LCD touch screen. It totally meets the standard ofGB/T6682-2008.
Model list

Model

ZYDM-I

ZYDM-II

ZYDM-III

ZYDM-IV

Optional capacity( L/H)

10L/H,20L/H

Flow rate

Up to1.5- 2.0 liters/minute(with pressure tank)

Feed water requirements

Tap water, temperature:5-45°C,pressure:1.0-5.0Kg

Conductivity - 1st stage RO water

Feed water conductivity×2%

Conductivity - 2nd stage RO water

1-5µs/cm

Ultrapure water quality

Resistivity(25°C)

18.25MΩ.cm

Bacteria

＜0.1cfu/ml

Particle(>0.1μm)

＜1/ml

Heavy metal ion

＜0.1ppb

Endotoxin(Pyrogens)

N/A

≤ 0.001EU/ml

TOC Level***

＜ 10 ppb

＜ 3 ppb

RNases

N/A

DNases

N/A

Dimension and weight

Length×Width×Height:530×380×560mm, 35~40Kg

Electrical requirements

AC110-240V, 50/60Hz

Power(W)

30W-50W

Terminal disinfection filter (TF)

N/A

yes

UV lamp

N/A

yes

N/A

yes

Standard configuration

Main body (Including 1 set of cartridge)+pressure tank

Product features
Fully automatic microcomputer double RO ZYDM control system.
1. Multi-level operation menu.
2. Backlit Liquid crystal display( Resolution:240*128; Size:66*33mm).
3. Real-time animation mode display.
4. Perfect management functions like RO and ultra-pure water making, water taking,system circulation and disinfection,etc.
5.Ultra-pure water circulation to extend the life span of consumable parts within ultra-pure water purification system.
6.Automatic RO membrane anti-fouling flushing and manual forced flushing procedures to extend the life span of RO membrane.
7.Comprehensive system maintenance and safety alarm:
8. Equipped with USB Host interface to support historical alarm records and water taking record data export function, to
facilitate the later access to historical operation conditions data.
9.Adopt more advanced, user-friendly membrane push button to take water.
10.Semi-transparent medical grade PP material do not produce secondary pollution.
11.Humanization design of manual/automatic water taking mode,Timing(1-99min),customization water taking (10-18.25MΩ.cm)
The process flow
1. Pre treatment cartridge consists of 5um PP fiber filter + Activated Carbon filter;
5um PP fiber filter: Remove particals above 5 um, e.g. rust,sediments,Seaweed, suspended matter; Activated carbon filter: Absorb odor, pigment, residual chlorine;
2. 2 Stage RO Membrane
It has high removal rate more than 98% for high valent ions, colloids, bacteria and organic matter (including endotoxin) with molecular weight greater than 300Dalton.
3. Ultrapure polishing resin cartridge
Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the water, the replaced H
+ and OH- combined to produce H2O, ultra-purified column filling Rohm and Haas Ultra-pure water for nuclear grade resin, the water resistance is up to 18.25 MΩ.cm.
