Industrial Kitchen Waste Shredding Machine Cloth Wood Pallet Shredder for Recycling

Product Description

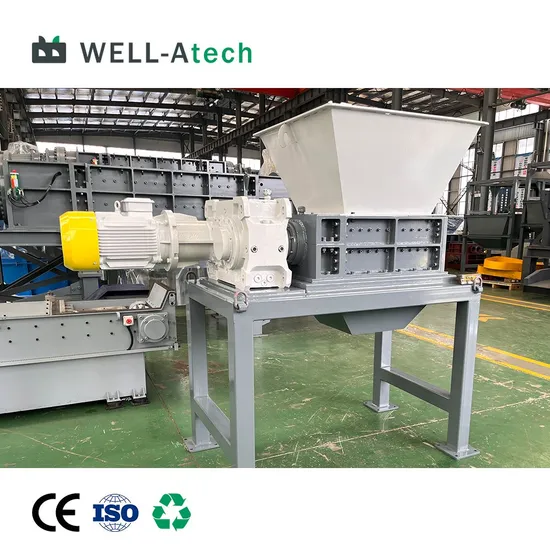

WED series double shaft shredder driven by single motor and gearbox. Drive two shafts at the same time by gears to achieve the shredding of material.
This series is light load shearing type shredder, which has compact structure and small footprint. But it has strong core strength, adopts high alloy steel blades ,42CrMo shaft, and detachable counter blade design.
Product Description

Project Site

Product Parameters

Model		WED-450	WED-600	WED-800	WED-1000
Shredding Chamber(mm)		350*450mm	600*550mm	800*600mm	1000*700mm
Power		5.5/7.5KW	15KW	22KW	30KW
		7.5/10HP	20HP	30HP	40HP
Blades Diameter		∅234mm	∅280mm	∅300mm	∅330mm
Blades Thickness		10/20mm	20/30mm	20/30mm	30mm
Rotor Blades QTY		34/18pcs	30/20pcs	42/26pcs	34pcs
Speed		30rpm	20rpm	10-25rpm	10-25rpm
Capacity		0.3-0.8t/h	0.5-1.5t/h	1-2.5t/h	1.5-3t/h
Net Weight		0.6t	1.2t	1.8t	2.2t
Dimension		1320*800*1800mm	2240*1050*2020mm	2500*1120*2230mm	2510*1865*2550mm
Voltage		Can be customized

Features

Application
+ Kitchen : Fruit And Vegetable Waste, Kitchen Waste, Wet Market Waste etc
+ Plastic : Plastic Bottles, Plastic Jugs, Plastic Buckets, Plastic Baskets etc
+ Electronic : Old Hard Disk, PCB Boards, Keyboards, Mice, Mobile Phones, CDs etc
+ Metal : Iron Shavings, Cans, Paint Buckets, Light Metals etc
+ Industrial : Old Clothes, Leather, Textile Scraps, Carpet Factory Waste Fabric etc
+ Medical waste: Syringe Waste,Expired Drug, Small Medical Equipment, Latex Material Waste, Waste Masks
+ Chemicals: Scr Denitration Catalyst, Polyamide Wax etc
