SMD LCD Display 1 Hour Backup 12V Battery Charger 600W Line Interactive UPS

Product Description

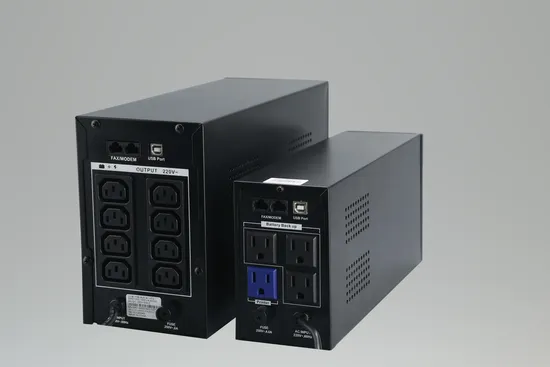

Line Interactive UPS
SMD 600VA/360W--3KVA/1.8KW
KEY FEATURES SMT Technology, Line interactive UPS 600VA-3KVA Metal Case, with AVR Protection for Short circuit, overload and battery low voltage LED indication and audible alarm function Silence Setup and Smart battery management function AUTO Restart function when AC recovers Off charge and Cold Start function RJ45 and USB is option LCD display is optionTechnical Specifications

ITEM	MODEL	SMD600	SMD650	SMD800	SMD1000	SMD1200	SMD1500	SMD2000EM	SMD3000EM
Capacity		600VA/360W	650VA/390W	800VA/480W	1KVA/600W	1.2KVA/720W	1.5KVA/900W	2KVA/1.2KW	3KVA/1.8KW
Input	Input Voltage	75-150 or 145-290+-5VAC						85-145VAC/175-275VAC
	Input Frequency	50/60HZ+-5% (AUTO Sensing)
Output	Wave Form	Modified Sine Wave
	Output Voltage	120/220/230/240VAC;50-127V,100-255V
	Transfer Time	4~6ms normal ,Max8Ms
	Output Frequency	50.0/60Hz±1.0Hz (Battery Mode),follow Mains while AC Mode
Battery And Charger	Battery Protection	FUSE
	DC Voltage	12VDC			24VDC			24VDC
	Internal Battery	1*7AH	1*7AH	1*9AH	2*7AH	2*7AH	2*9AH	2*9AH	4*9AH
	Backup Time	3-20Minutes(1PC+15 inch CRT)			30-60Minutes(1PC+15 inch CRT)		40-80Minutes(1PC+15 inch CRT)	50Minutes(1PC+15 inch CRT)	100Minutes(1PC+15 inch CRT)
Protection		Over charge and over discharge,short Circuit,Overload
Display		LED display for AC/ DC mode and Fault,. LCD is option
Alarm		Alarm while DC mode/ Battery low / Overload /Battery replacement.
Enviromental Characteristics	Ambient Temp.	0 to 40 degree celsius
	Relative Humidity	0% to 90%
	Storage Temp.	-15 to 40 degree celsius
	Noise Level	40dB(Max)
Product Size		305*85*140	305*85*140	305*85*140	324*100*153	324*100*153	324*100*153	345*122*192	412*145*210
Packing Size (MM)		380*278*443	380*278*443	380*278*443	415*410*298	415*410*298	415*410*298	415*410*298	495*238*343
PCS/CTN		4	4	4	2	2	2	2	1
Gross Weight /CTN (KG)		22.8/CTN	23/CTN	26/CTN	22.8/CTN	22.8/CTN	25.6/CTN	23.5/CTN	21.5/CTN

PRODUCT DISPLAY
LCD SMD-EP Display
1.ON/OFF switch
2.Input voltage
3.Output voltage
4.Load level
5.Battery capacity
6.UPS fault
7.Overload
LED SMD-EP Display
1.ON/OFF switch
2.AC / Backup status
3.Battery / Load Status
4.Battery capacity / Load level indicator

---
