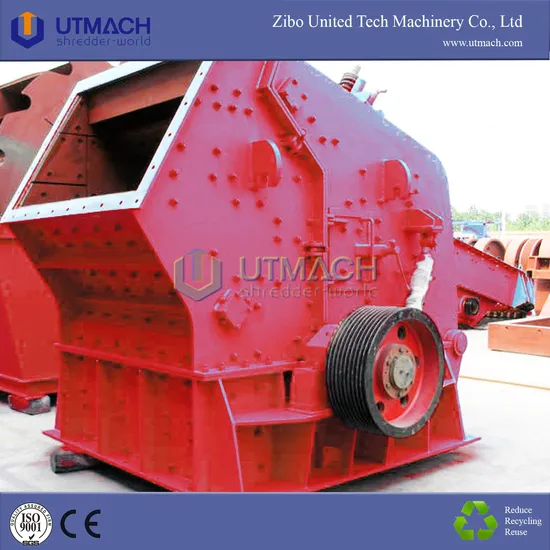

Mining Applications Durable PF Series Hard Rock Impact Crusher

Product Description

PF Series Hard Rock Impact Crusher Product Description

Function of the series of crushing processing size is not more than 120-500. mm, compressive strength less than 320 mpa ore, rock, big crushing ratio, high crushing efficiency, the product shape is a cube, selective crushing, etc. This series are divided into mining, cement and concrete industry in three broad categories, products applicable to used for a variety of compressive strength of ore crushing.

Advantage >>

• Hard rock crushing • adopt multi-cavity uniform broken • High chromium board hammer • Start by hydraulic or manual • unique counterattack plate

Item	Model	Max Feeding Size(mm)	Weight (mt)	Capacity (t/h)	Motor Power (kw)
Hard Rock Impact Crusher With PF Series	PF-0504	100	1.5	5-8	7.5
	PF-0607	120	4.1	10-20	30
	PF-1007	250	6.5	15-30	37
	PF-1010-1	250	12.7	30-80	75
	PF-1210-1	300	14.5	60-120	100
	PF-1212-1	300	16.8	80-140	132
	PF-1214-1	300	29.5	100-160	132
	PF-1310-1	300	14.2	70-140	132
	PF-1315-1	300	21.5	100-180	180
	PF-1320-1	300	24.5	150-250	200
	PF-1520-1	300	29.5	180-320	220
	PF-1622-1	350	101	400-600	250
	PF-1822-1	400	118	500-800	280

Note:
1. The voltage and motor power supply can be selected by the customer's specific requirements.
2. The crusher capacity can be influenced by the material composition and output size. We provide Customized Machines.
The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.
Our service:
(1) Your inquiry related to our products or prices will be replied in 12hours.
(2) Our engineer will make machine placement chart according to client's workshop chart
(3) We provide 12 months guarantee since the date of bill of loading. All products are passed strict test.

We warmly welcome you to visit our factory anytime , and we are very glad to test our machine with your raw material.

---
