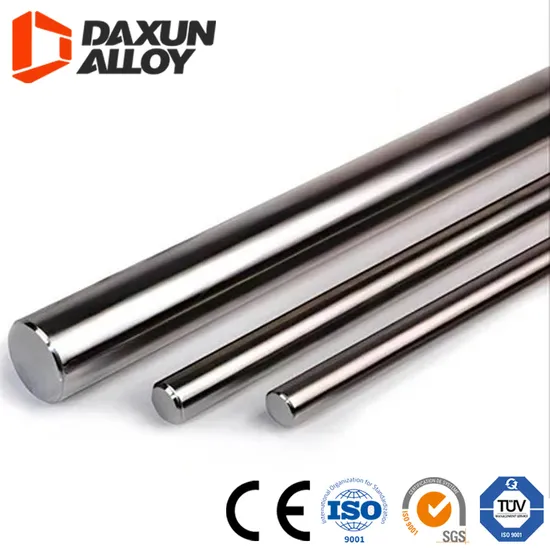

Gr5 Ti6al4V Titanium Alloy Rod Bright Titanium Bar Spot AMS 4921 High Precision Grade5 Titanium Rod

Product Description

Product Parameters

Material	Titanium rod and bar Grade 5 Ti6Al4V
Standard	ASTM B348, ASTM SB348, AMS 4921, AMS 4902
Dimensions	EN, ASTM, JIS, ASME, BS, AISI
Diameter Range	0.125″ - 14″ (3.175mm - 355.6mm), custom
Length Range	Up to 240″ (6096mm), custom
Finish	Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Surface Finish	Cold drawn, Centerless Ground, Polished, Or Rough Turned, Black, NO.4 Finish, BA Finish, Matt Finish, etc.
Condition	Hardened & tempered, annealed
Tolerance	Diameter tolerance: +/- 0.005″ (0.127mm), length tolerance: +/- 0.125″ (3.175mm)
Form	Titanium square bars, titanium ingots, titanium round bars, rectangular titanium bars, triangular titanium bars, forged titanium bars, titanium hexagonal bars, etc.

Detailed Photos
The global leader in providing world-class, commercially pure titanium rod manufacturing services.At Daxun, we excel in producing high-performance alloy titanium rods specially designed for extreme environments, with our Ti6AL-4V titanium alloy rods standing as a testament to our advanced capabilities. Grade 5 titanium alloy rod (titanium aluminum vanadium alloy) is the most widely used α-β titanium alloy, making up 50% of the total global titanium alloy consumption. This standout alloy is fully heat treatable and can withstand temperatures up to 400°C. With a low density of 4.43 kg/dm³, it offers exceptional corrosion resistance and high mechanical strength. Not only does Grade 5 titanium alloy exhibit high tensile strength at ambient temperature, but it also provides excellent creep resistance up to 300°C, as well as robust *** and fatigue resistance. The 6AL-4V titanium alloy rod's age-hardening capability makes it ideal for numerous applications, including fasteners and components for harsh environments. Its superior machinability and weldability further enhance its suitability for diverse industrial uses.
DAXUN® Grade 5 Titanium Rod FeaturesDAXUN® Ti Grade 5 is a premier titanium alloy bar (6AL-4V) offering:
Excellent hot formability and weldability;Tensile strength reaching up to 1000MPa;Dimensional stability at high temperatures;Resistance to seawater and various corrosive environments;High resistance to a wide range of corrosive media;Exceptional strength and toughness;Superior resistance to *** initiation and propagation. Grade 5 Titanium Rod Production MethodDaxun is dedicated to producing high-caliber titanium bars with outstanding performance, also offering customized manufacturing as per customer agreements:
Titanium ingots undergo heat treatment, machining, ultrasonic testing, mechanical properties assessment, and structural inspections. Our production process includes: hot-rolled titanium bars, known for high efficiency and stable performance; forged titanium bars, which offer flexible sizing and improved comprehensive performance through multi-fire forging; and cold-drawn titanium bars, typically small-sized, high-precision bars. All these bars come with a bright surface finish. Quality, Delivery, InspectionDaxun conducts rigorous quality assurance tests, including mechanical tests (area tensile), chemical analysis, material positive identification (PMI test), micro and macro testing, intergranular corrosion (IGC) tests, ultrasonic flaw detection, pitting resistance tests, hardness tests, expansion tests, and more. These ensure the suitability of Grade 2 Titanium Rod and Round Bar for intended applications. During production, we meticulously measure the product's diameter, thickness, and surface quality.
We strictly adhere to contract timelines for delivery.Support customer third-party agencies for in-factory inspections.Offer free samples for customer testing.Support both on-site and video factory inspections.
Chemical Composition of (Ti 6AL-4V) Grade 5 Titanium Rods

Chemical Composition:
Symbol	Element	Min %	Max %
Al	Aluminum	5.50%	6.75%
V	Vanadium	3.50%	4.50%
Fe	Iron		0.30%
O	Oxygen		0.20%
C	Carbon		0.08%
N	Nitrogen		0.05%
H	Hydrogen		0.01%
Y	Yttrium		0.01%
	Other, each		0.10%
	Other, total		0.40%
Ti	Titanium		Remainder

Mechanical Properties of (Ti 6AL-4V)Grade 5 Titanium Tube

Physical Properties	Metric	English	Comments
Density	4.43 g/cc	0.16 lb/in³
Mechanical Properties
Hardness, Brinell	334	334	Estimated from Rockwell C.
Hardness, Knoop	363	363	Estimated from Rockwell C.
Hardness, Rockwell C	36	36
Hardness, Vickers	349	349	Estimated from Rockwell C.
Tensile strength	min. 895MPa	129810 psi
Yield strength	min. 828MPa	120090 psi
Elongation at Break	min.10 %	10 %
Reduction of Area	min.25 %	25 %

Chemical Composition of Grade 2 Titanium Rods

Element	Weight %
C	≤0.08
O	≤0.25
N	≤0.03
H	≤0.015
Fe	≤0.30
*OEE	≤0.10
*OET	≤0.40
Ti	Remaining

Mechanical Properties of Grade 2 Titanium Rods

Alloy	UNS Designation	Spec.	Tensile Strength (min.)			Yield Strength 0.2% Offset (min.)			Elongation in 2 inches (min.)	Max Hardness	Modulus of Elasticity (x106 psi)	Mean Coefficient of Thermal Expansion IN./IN./°F x 10-6)	Thermal Conductivity (BTU-in/ft2-h-°F)
			psi	MPa	ksi	psi	MPa	ksi	%
Grade 2 Titanium	R50400	B338	50,000	-345	50	40,000-	(276-448)	40-65	20	-	16	5.1	144
						50,000

Chemical Composition of Grade 1 Titanium Rods

Element	Minimum (weight %)	Maximum (weight %)	Typical (weight %)
Fe		0.2
O		0.18
C		0.08
N		0.03
H		0.015
Ti	Balance

Mechanical Properties of Grade 1 Titanium Rods

Density
lb/in3	g/cm3
0.163	4.51
Tensile Strength
ksi	MPa
35 min	240 min
Yield Strength
ksi	MPa
20 min	138 min
Hardness
70 HRC max
Elongation
24% min

Chemical Composition of 3Al-2.5V Titanium RodsElementMinimum (weight %)Maximum (weight %)Typical (weight %)

Al	2.5	3.5
V	2.0	3.0
Fe		0.25
O		0.15
C		0.08
N		0.03
H		0.015
Ti	Balance

Packaging & Shipping
Company Profile
Daxun Titanium RodDaxun Alloys offers an extensive inventory including Grade 1, Grade 2, and Grade 5 Titanium Rods, available in various diameters to cater to your specific project needs - from general industrial uses to advanced military aerospace applications. Our Titanium Alloy Rods range in size from 1mm up to 300mm in diameter, with custom orders for larger sizes readily accepted. Certified to ASTM B348 and ASTM B381 standards, our high-quality pure titanium and titanium alloy rods are ready for prompt delivery. For a quote or further inquiries, please contact Daxun. Our expert team is on hand to offer guidance and support to ensure you receive the perfect solution for your requirements.
Daxun prides itself on a seamless technology cycle - from raw material processing to the production of intricately machined finished products. Our expansive service center network ensures that bar products are stocked for immediate, off-the-shelf delivery of standard sizes and alloys. Additionally, we manufacture custom sizes and organize stocking programs for rapid, just-in-time deliveries for quantities below mill minimums. Count on Daxun for precision, quality, and swift turnarounds tailored to your specific needs.

CP GR1 Titanium rods PHYSICAL PROPERTIES
Physical Properties	Metric	English	Comments
Density	4.50 g/cc	0.163 lb/in³
a Lattice Constant	2.95 Å @Temperature 25.0 °C	2.95 Å @Temperature 77.0 °F	alpha phase
	3.29 Å @Temperature 900 °C	3.29 Å @Temperature 1650 °F	beta phase
c Lattice Constant	4.683 Å	4.683 Å @Temperature 77.0 °F	c/a = 1.587
Mechanical Properties	Metric	English	Comments
Hardness, Brinell	120	120	annealed
Hardness, Knoop	132	132	Estimated from Brinell.
Hardness, Rockwell B	70	70	annealed
Hardness, Vickers	122	122	Estimated from Brinell.
Tensile Strength	124 - 138 MPa @Temperature 427 °C	18000 - 20000 psi @Temperature 801 °F
	152 - 179 MPa @Temperature 316 °C	22000 - 26000 psi @Temperature 601 °F
	193 - 207 MPa @Temperature 204 °C	28000 - 30000 psi @Temperature 399 °F
Tensile Strength, Ultimate	240 MPa	34800 psi
Tensile Strength, Yield	170 - 310 MPa	24700 - 45000 psi
	76.0 - 90.0 MPa @Temperature 427 °C	11000 - 13100 psi @Temperature 801 °F	0.2% offset
	83.0 - 103 MPa @Temperature 316 °C	12000 - 14900 psi @Temperature 601 °F	0.2% offset
	110 - 124 MPa @Temperature 204 °C	16000 - 18000 psi @Temperature 399 °F	0.2% offset
Elongation at Break	24%	24%
	25 - 30 % @Temperature 427 °C	25 - 30 % @Temperature 801 °F
	30 - 35 % @Temperature 316 °C	30 - 35 % @Temperature 601 °F
	40 - 50 % @Temperature 204 °C	40 - 50 % @Temperature 399 °F
Reduction of Area	35%	35%
Tensile Modulus	103 GPa	14900 ksi
Compressive Modulus	110 GPa	16000 ksi
Poissons Ratio	0.37	0.37
Shear Modulus	45.0 GPa	6530 ksi
Charpy Impact	310 J	229 ft-lb	V-notch
Impact Test	136 J	100 ft-lb	Impact Strength
Coefficient of Friction, Dynamic	0.68	0.68	Ti sliding on Ti; 300 m/min
	0.8	0.8	Ti sliding on Ti; 40 m/min

CP GR2 Titanium rods PHYSICAL PROPERTIES
Density	Magnetic Permeability
0.163 lbs/in-3	Nonmagnetic
4.51 g/cm-3	Electrical Resistivity
Beta Transus (+/-25°F, +/--3.9°C)	21 µΩ/in
1680°F	0.53 µΩ/m
915°C	Elastic Modulus
Thermal Conductivity	15.2-17.4 Msi
12.60 BTU hr-1ft-1 °F-1	105-120 GPa
21.79 W m-1 °C-1	Typical values at room temperature of about 68-78°F (20-25°C)

GR5 TI6AL4V Titanium rods PHYSICAL PROPERTIES
Physical Properties	Metric	English	Comments
Density	4.43 g/cc	0.16 lb/in³
Mechanical Properties
Hardness, Brinell	334	334	Estimated from Rockwell C.
Hardness, Knoop	363	363	Estimated from Rockwell C.
Hardness, Rockwell C	36	36
Hardness, Vickers	349	349	Estimated from Rockwell C.
Tensile strength	min. 895MPa	129810 psi
Yield strength	min. 828MPa	120090 psi
Elongation at Break	min.10 %	10 %
Reduction of Area	min.25 %	25 %
Modulus of Elasticity	113.8 GPa	16500 ksi
Compressive Yield Strength	970 MPa	141000 psi
Notched Tensile Strength	1450 MPa	210000 psi	Kt (stress concentration factor) = 6.7
Ultimate Bearing Strength	1860 MPa	270000 psi	e/D = 2
Bearing Yield Strength	1480 MPa	215000 psi	e/D = 2
Poisson's Ratio	0.342	0.342
Charpy Impact	17 J	12.5 ft-lb	V-notch
Fatigue Strength	240 MPa	34800 psi	at 1E+7 cycles. Kt (stress concentration factor) = 3.3
Fatigue Strength	510 MPa	74000 psi	Unnotched 10,000,000 Cycles
Fracture Toughness	75 MPa-m½	68.3 ksi-in½
Shear Modulus	44 GPa	6380 ksi
Shear Strength	550 MPa	79800 psi	Ultimate shear strength
Electrical Properties
Electrical Resistivity	0.000178 ohm-cm	0.000178 ohm-cm
Magnetic Permeability	1.00005	1.00005	at 1.6kA/m
Magnetic Susceptibility	3.30E-06	3.30E-06	cgs/g
Thermal Properties
CTE, linear 20°C	8.6 µm/m-°C	4.78 µin/in-°F	20-100ºC
CTE, linear 250°C	9.2 µm/m-°C	5.11 µin/in-°F	Average over the range 20-315ºC
CTE, linear 500°C	9.7 µm/m-°C	5.39 µin/in-°F	Average over the range 20-650ºC
Specific Heat Capacity	0.5263 J/g-°C	0.126 BTU/lb-°F
Thermal Conductivity	6.7 W/m-K	46.5 BTU-in/hr-ft²-°F
Melting Point	1604 - 1660 °C	2920 - 3020 °F
Solidus	1604 °C	2920 °F
Liquidus	1660 °C	3020 °F
Beta Transus	980 °C	1800 °F

Certifications
Daxun Jiangsu Daxun Alloy Co., Ltd. produces highly competitive, high-precision Grade 1 titanium bars in our state-of-the-art production facilities in China. With impeccable surface finish, precise tolerance, unmatched straightness, and superior material quality, we provide you with technological leadership and consistency in production processes. These advantages span a wide range of diameters and materials, complemented by our comprehensive stocking program at our service center, ensuring just-in-time delivery.
Size rangeGrade 1 Titanium Bar DimensionsØ 0.7 - 30 mm (drawn, ground)Ø 16 - 400 mm (hot rolled, peeled)h11-h5 possibleTighter or different tolerances available on requestLengths up to 9,000 mm long, depending on diameterFor larger diameters, other bar lengths and tolerances can be agreed upon requestAvailability of Grade 1 Titanium rodsDrawing, straighteningDrawing, straightening, polishingDrawing, grinding, polishingDrawing, straightening, grinding, polishingDrawing, annealing, straighteningDrawing, annealing, polishingDrawing, annealing, grinding, polishingDrawing, annealing, straightening, grinding, polishingProcessingWe produce bars according to your specific requirements.
With excellent surface and straightness, perfect roundness, and the tightest diameter tolerances (according to ISO 286-2 up to h5), our bars are available in straightened, ground, polished conditions.
Sawing
Band saws (up to Ø 510 mm)
Bench band saws (up to 6,000 x 3,000 x 400 mm)
High-performance sawing machines for precise cutting
Titanium Bar End MachiningSingle or double-sided
Chamfer 90° (45°)
Point 60° (30°)
Flat end
Centered
Delivery FormASTM American Society for Testing and Materials Standards
AMS American Aerospace Materials Standards
NACE American Association of Corrosion Engineers International Standards
ASME American Society of Mechanical Engineers Standards
GB Chinese National Standards
GJB Chinese National Military Standards
ISO International Standards
DIN German Standards
EN European Standards
API American Petroleum Institute Standards
Detection MethodNon-destructive testing >100% tested
Testing Methods
Eddy current testing/eddy current *** testing
Defect-free surface (level 4)
Flat bottom hole diameter 0.7 mm and 0.4 mm
Blind area can be cut off according to fixed length > Test to the end of the bar
Full diameter ultrasonic testing
Our Titanium Bar MaterialServicesAs an experienced service center, we offer bespoke solutions to meet your titanium bar material specifications. Partnering with certification bodies such as TÜV Rheinland or DNV, we ensure compliance and upgrade titanium semi-finished products to suit specialized applications.We are delighted to provide in-depth consultations, guiding you through every aspect of acquiring titanium bar material. We highlight the stringent standards required for manufacturing components.For long-term supply commitments, establish a framework agreement with Daxun. We guarantee stable prices and quantities for a predetermined period.Leverage our vast experience in the global market, helping businesses worldwide since 2003. For any additional information about Grade 2 Titanium Bar, our experts are ready to assist. We look forward to your inquiries.Ordering InformationWhen placing orders, please specify the quantity, grade, type or category, API5L reference, dimensions (thickness, width, length), and any additional requirements regarding chemical composition, mechanical properties, heat treatment, additional testing, manufacturing process, surface coating, or end finish. Contact Daxun now, and we will respond promptly.
Grade 5 Titanium Rod
Daxun boasts a state-of-the-art production facility in China, manufacturing high-precision Grade 5 titanium bars. These bars offer excellent surface quality, tolerance, straightness, and material consistency, ensuring technological leadership and reliable production processes across various diameters and materials. Our extensive stock program at our service center supports just-in-time delivery.
SPECIFICATIONS AMS 4928 - Bars, Forgings, and Forging Stock (Annealed)
AMS 4965 - Bars, Forgings (Solution Treated and Aged)
AMS 4967 - Bars, Forgings (Annealed, Heat Treatable)
HEAT TREATMENT For high hardness, tensile strength, and fatigue strength, annealing can be performed at 1,700-1,900°F (927 - 1,038°C).
DAXUN 6-4™ Grade 5 alloy allows for multiple heat treatment options.1. Anneal: 1,275 -1,400°F (691 - 760°C), ½ to 2 hours, air or furnace cool.2. Stress Relief Anneal: 1,000 -1,200°F (538 - 649°C), 1 to 8 hours, air or furnace cool.3. Solution Heat Treat: 1,675 -1,750°F (913 - 954°C), 1 hour, water quench.4. Aging: 975 -1,025°F (524 - 552°C), 4 to 8 hours, air cool.In the solution treated and aged condition, rapid quenching of small sections yields optimum properties, while larger sections and/or delayed quenching may result in suboptimal properties.
HARDNESS Typical hardness in the annealed condition is Rockwell C 30-34, and Rockwell C 35-39 in the solution and aged condition.
Forgeability/FormabilityTi-6Al-4V, Grade 5 alloy bar is forged at 1,750°F (954°C) with a final forging temperature of 1,450°F (788°C). A minimum of 35% reduction is recommended for achieving optimal properties.The Ti-6Al-4V, Grade 5 alloy bar, renowned for its resilience, presents challenges in forming at room temperature-even in its annealed state. For severe operations like bending or stretching, the material can be handled at elevated temperatures up to 1,200°F (649°C) without compromising its mechanical properties. Hot sizing and forming are feasible through creep forming within the range of 1,000 - 1,200°F (538 - 649°C).MachinabilityThe Ti-6Al-4V, Grade 5 alloy bar is amenable to machining using techniques suited for austenitic stainless steel. Optimum results require slow machining speeds, robust tools, high feeds, and substantial application of non-chlorinated cutting fluids.
WeldabilityThe Ti-6Al-4V, Grade 5 alloy rod is easily weldable in both the annealed and partially aged conditions. Post-weld heat treatment facilitates the aging process. Care must be taken to avoid contamination by oxygen, nitrogen, and hydrogen. Fusion welding should be performed in an inert gas-filled chamber or using inert gas to shield the molten metal and adjacent zones, complemented by a tail shield. Spot, seam, and flash welding are possible without a protective atmosphere.
Special ConsiderationsThe Ti-6Al-4V, Grade 5 titanium alloy rod is susceptible to contamination by hydrogen during improper pickling and by oxygen, nitrogen, and carbon during processes like forging, heat treating, and brazing. Such contamination can reduce ductility, thereby affecting notch sensitivity and forming characteristics.
Size rangeGrade 1 Titanium Bar DimensionsØ 0.7 - 30 mm (drawn, ground)Ø 16 - 400 mm (hot rolled, peeled)h11-h5 possibleTighter or custom tolerances available upon requestLengths up to 9,000 mm, contingent on diameterFor larger diameters, alternative bar lengths and tolerances can be arranged upon requestAvailability of Grade 5 Titanium rodsDrawing, straighteningDrawing, straightening, polishingDrawing, grinding, polishingDrawing, straightening, grinding, polishingDrawing, annealing, straighteningDrawing, annealing, polishingDrawing, annealing, grinding, polishingDrawing, annealing, straightening, grinding, polishingProcessingWe can produce bars tailored to your specifications.
Exceptional surface finish and straightness, ideal roundness, and the tightest diameter tolerances (as per ISO 286-2, up to h5). Available in straightened, ground, and polished conditions.
Sawing
Band saws (up to Ø510 mm)
Bench band saws (up to 6,000 x 3,000 x 400 mm)
High-performance sawing machines for precise cutting
Titanium Bar end machiningSingle or double-sided
Chamfer 90° (45°)
Point 60° (30°)
Flat end
Centered
Delivery formASTM - American Society for Testing and Materials Standards
AMS - American Aerospace Materials Standards
NACE: American Association of Corrosion Engineers International Standards
ASME: American Society of Mechanical Engineers Standards
GB: Chinese National Standards
GJB: Chinese National Military Standards
ISO: International Standards
DIN: German Standards
EN: European Standards
API: American Petroleum Institute Standards
Detection Method OverviewNon-Destructive Testing > Comprehensive 100% Testing
Innovative Testing Methods
Eddy Current Testing / Eddy Current *** Detection
Pristine, Defect-Free Surface (Level 4)
Flat Bottom Hole Diameter: 0.7 mm and 0.4 mm
Blind Area Cut-Off Capability > Testing Extends to Bar's End
Full Diameter Ultrasonic Testing
Titanium Bar Material Services from Jiangsu Daxun Alloy Co., Ltd.As a seasoned service center, we customize titanium bar materials to your precise specifications. We collaborate with esteemed certification bodies such as TÜV Rheinland and DNV to validate specifications, ensuring that our titanium semi-finished products are upgraded to meet relevant applications.We are delighted to offer consultations, providing comprehensive insights into obtaining titanium bar materials. We will guide you on the standards that warrant meticulous attention for component manufacturing.For long-term supply commitments, establish a framework agreement with Daxun. We ensure stable prices and quantities over an agreed period.Leverage our extensive global market experience. Since 2003, we have supported businesses worldwide. For any detailed information about Grade 2 Titanium Bar, our professionals are at your service. We eagerly await your inquiries.Ordering InformationYour purchase orders should specify quantity, grade, type or category, API5L reference, thickness, width, length, and any related attachments or additional requirements regarding chemical composition, mechanical properties, heat treatment, supplementary testing, manufacturing processes, surface coating, or end finish. Contact Daxun now for a prompt response to your email.
Grade 2 Titanium Rod Specifications
Outstanding Corrosion ResistanceTitanium should not be exposed to strong reducing acids, fluoride solutions, pure oxygen, or anhydrous ***.
General Corrosion ResistanceThe corrosion rates for Grade 2 titanium across various media are detailed in Table 1. CP titanium showcases excellent resistance to a broad spectrum of environments, including:
Seawater and BrinesInorganic SaltsMoist *** GasAlkaline SolutionsOxidizing AcidsOrganics and Organic AcidsSulfur CompoundsCrevice Corrosion ResistanceCP titanium excels in resisting crevice corrosion in salt solutions compared to stainless steels. CP titanium remains unaffected by crevice corrosion at temperatures below 80°C (176°F) regardless of pH, even in highly chlorinated conditions.
Stress Corrosion CrackingGrade 2 titanium provides outstanding resistance to stress corrosion cracking (SCC) in hot chloride solutions and remains immune to SCC in seawater.
Erosion Corrosion ResistanceTitanium demonstrates remarkable resistance to erosion in flowing conditions.
Experience the unparalleled durability of our titanium rods, showcasing negligible effects even in seawater velocities up to 130 ft/sec (40 m/sec). The presence of abrasive particles, like sand, has only a minimal impact on its exceptional corrosion resistance.
Hydrogen Embrittlement: A Non-Issue for Our TitaniumRest assured, our titanium demonstrates no significant hydrogen absorption when exposed to seawater, even at elevated temperatures. Hydrogen absorption typically requires three specific conditions to be met:
1. The pH level must be less than 3 or greater than 12.2. The temperature must exceed 176°F (80°C).3. A mechanism for hydrogen generation, such as a galvanic couple or impressed current, must be present.Bio-Corrosion: Shielded by NatureTitanium alloys stand uniquely immune to all forms of microbiologically influenced corrosion. While non-toxic to marine life, biofouling in seawater can be managed through chlorination or by increasing water velocity in heat exchangers.
Corrosion Fatigue: Uncompromised StrengthRemarkably, titanium maintains its fatigue performance even in seawater, unlike many other materials. Fatigue endurance limits and *** growth rates remain consistent whether tested in air or seawater.
Galvanic Corrosion: Titanium's Noble AdvantagePositioned towards the noble end of the galvanic series near stainless steels, titanium typically acts as a cathode when coupled with other metals, thus avoiding galvanic corrosion. However, it may accelerate corrosion in the coupled metal. Pairing titanium with more noble metals, like graphite, further enhances its passivity.
Exceptional Fatigue PropertiesGrade 2 Titanium Rod boasts unrivaled fatigue properties, unaltered by seawater exposure. Its fatigue endurance limits and *** growth rates are equally reliable in both air and seawater environments.
Weldability: Precision and CareCP2 Grade Titanium Rod offers excellent weldability with proper precautions. Ensuring an inert gas shield on both the OD and ID and removing all grease or oil contamination are critical for optimal results.
Typically welded using manual or automatic TIG welding, Grade 2 Titanium Rod requires low heat input to minimize the heat-affected zone. Post-weld heat treatment is generally unnecessary.

Working material:	3.7035 / UNS R50400
Diameter:	3 - 400 mm
Lengths:	2.000 - 4.000 mm
Versions:	Rolled, forged, annealed
Surfaces:	Turned, peeled, polished
Standards:	ASTM B 348, ASME SB 348, DIN 17862, ASTM F 67, NACE MR 0175, ISO 1515156-3, ISO 5832-2

Purchase Premium Grade 2 Titanium Rods/Rounds at DaxunIn search of high-quality Grade 2 Titanium Alloy Rod-3,7035? Daxun offers customizable titanium rods, backed by our expertise and dedication to support your projects seamlessly.
Choose from Grade 2 Titanium bars in diameters ranging from 2.0 mm to 400 mm. Note that execution and tolerances vary; small diameters are centerless ground with h7 tolerances, while larger ones meet h9 or h11 tolerances.
Explore Grade 2 Titanium Bars: Features and SpecificationsOur forged bars can be peeled or pre-machined, available in various specifications tailored to application and market demands.Meeting rigorous standards, our titanium bars conform to ASTM B348, ASTM F 67, DIN 17860, VD TÜV Table 230-3, and Nace MR 0175 certifications.Titanium round bars excel in environments requiring superior corrosion resistance and robust mechanical properties.Grade 2 titanium bars (3,7035) are ideal for construction materials in equipment and devices, thanks to their excellent processability.Comprehensive Titanium Bar Material ServicesWith our extensive expertise as a dedicated service center, Jiangsu Daxun Alloy Co., Ltd. is uniquely positioned to customize your Titanium Rod Gr5 ASTM B348 to your exact specifications. We collaborate with esteemed certification bodies like TÜV Rheinland and DNV to ensure your titanium bars meet the highest standards. Additionally, we facilitate the enhancement of titanium semi-finished products to align perfectly with your specific application requirements.We are delighted to offer comprehensive consultations to guide you through every detail of acquiring top-tier Titanium Rod Gr5 ASTM B348. Our experts provide insights into critical standards and regulations to ensure your components are manufactured to the utmost precision and quality.For clients with long-term supply needs, establishing a framework agreement with Daxun guarantees exceptional stability in pricing and quantities over a predetermined period, ensuring seamless and reliable supply chain management.Leverage Daxun's extensive global market experience, honed since 2003. Our seasoned professionals are ready to assist with any inquiries about Grade 2 Titanium Bar. We pride ourselves on our global reach and personalized customer support. We look forward to connecting with you and addressing your titanium needs.Ordering InformationWhen placing your purchase orders, kindly include all the necessary details such as quantity, grade, type or category, API5L reference, and dimensions (thickness, width, length). Don't forget to specify any additional requirements or attachments related to chemical composition, mechanical properties, heat treatment, extra testing, manufacturing process, surface coating, or end finish. Reach out to Daxun today, and expect a prompt and detailed response to your email.
FAQ Q1: What products can you offer?
A: We offer an extensive range of general steel types including 310S, 316L, 304, 304L, 201, 904L, 316H, 316, 316L, as well as the entire 300 series.
Additionally, we supply 400 series steels and duplex stainless steels such as 2205, 2304, 2101, and 2507. Our high-nickel alloys include 904L, 800H, and 600H.
Q2. Can you produce the products according to my own drawings?
A: Yes, we can manufacture products precisely according to your drawings, ensuring maximum satisfaction.
Q3. How does your factory handle quality control?
A: Quality is our top priority. We place great emphasis on maintaining stringent quality control from the very beginning to the end of the production process.
Q4. Can I request to change the form of packaging and transportation?
A: Yes, we can modify the packaging and transportation methods according to your specific requests.
However, you will need to bear any additional costs incurred during this process.
Q5. How does your factory handle quality control?
A: Quality is our top priority. We place great emphasis on maintaining stringent quality control from the very beginning to the end of the production process.
Q6. How long is the delivery time?
A: Our typical delivery time is 7 to 20 working days after confirming the payment.
For urgent orders, we can expedite the production process to meet your needs.
Q7. What are your payment terms?
A: 100% T/T advance payment, or Western Union for smaller orders.
B: 30% T/T in advance and the remaining 70% before shipment.
C: 100% Irrevocable LC at sight for larger orders.
Q8: Can you produce Deep Drawing Quality (DDQ) materials?
A: Yes, our materials are suitable for deep drawing applications such as stainless steel pots, sinks, and bowls. Just inform us of your specific requirements and we will adjust the mechanical properties accordingly.
Q9: How can I obtain a sample?
A: We offer FREE samples for your review and testing. For small pieces, we may cover the courier costs, depending on the situation.
Q10: To which countries have you exported your products?
A: We have exported our stainless steel materials to numerous countries including Vietnam, Thailand, Turkey, Russia, Morocco, South Korea, India, Pakistan, UAE, Ukraine, and many others.
Q11: How can I visit your company?
A: You can fly to Guangzhou Baiyun International Airport, from where we will arrange to pick you up.

---

>> Portable digital ultrasonic thickness gauge in stock
>> High Precision Hf Control CNC EDM Spark Erosion Machine
>> Boys and Girls Children Mountain Bike 20-24 Inche Kids Bicycle
>> Byloo wide baitcasting fishing reel spinning casting bulk wide body fishing reel
>> Quality Metal Punching / Metal Stamping Part for Lighting Industry/ Lamp Part
>> Mitsubishi inverter FR-E740-2.2K-CHT 2.2KW Mitsubishi E740 Series 3-phase 380V
>> 600-800kg/H Farm Use Rice Husk Animal Feed Mill Production Line
>> 150 meter long transmission HD camera hd sdi cable
>> Manufacture Custom CNC Milling Aluminum Water Gun Case with Anodizing Finishing
>> Mining Applications Durable PF Series Hard Rock Impact Crusher
>> High Efficient PP PE Agricultural Industrial Film Woven Bag Plastic Recycling Pelletizing Squeezing Drying Extruder Granulating Granulator Machine Pelletizer
>> Fmworld Ruilong Plus 4lz-6.0p Agriculture Farm Machine Rice Combine Harvester
>> 3m cable head, cable connector, cable intermediate connector, cable terminal head 5602pst-g1
>> Rent a Excavator Hydraulic Excavator Cheap Digger Diesel Digger Excavator
>> High Speed Automatic Paper Box Packing Machine Filling Sealing Packing Paper Packaging Machine for Biscuit Cookies
>> Trivial Print Cotton Fabric Gypsy Wrap Around Skirt With Bag Belt HHCS 140 A
>> Huaxia 2000W Fiber Laser Cutting Machine
>> Rotary Warning Lamp Beacons Strobe Lamp LED Flashing Light with Aluminum Base
>> Kx6 Variable Distance High-Speed Blow Feeder Molding Machine for Production Special-Shaped Bottles
>> Paper Bag /Kraft Paper /Corrugated Paper Making Machine
