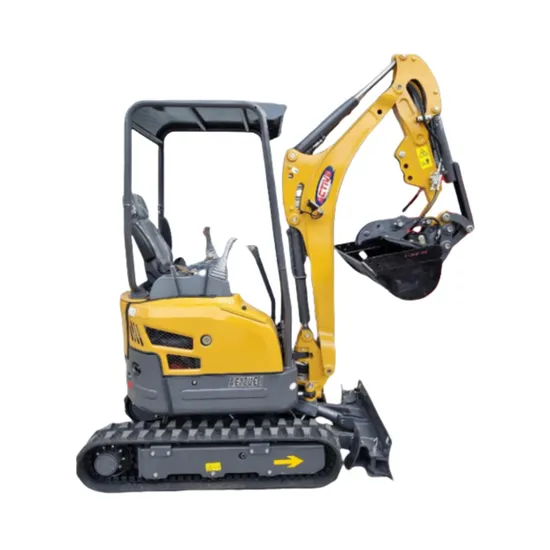

This powerful Compact Mini Excavator is engineered with the robust D902 engine, boasting an impressive operating weight of 9120kg. Experience the precision of pilot-operated controls, ensuring seamless and responsive handling.
Equipped with a sturdy and protective canopy, this machine guarantees precise and effortless operation. It delivers formidable power, ensuring efficient performance in various urban construction projects. Count on its reliability and durability to meet demanding worksite needs with ease.
| Model | SY20(Euro 5) |
| Operating weight (ton) | 1920 |
| Bucket capacity (cbm) | 0.04 |
| Engine model | D902-E4B-CBH-1 |
| Rated power (kw/r/min) | 11.8 |
| Hydraulic pump model | NACHI/15P |
| Max.flow (L/min) | 33 |
| Working pressure (Mpa) | 21 |
| Control valve model | BEIFANG9 |
| Swing motor model | OLD-245 |
| Travel motor model | LTM02PA |
| Fuel tank capacity (L) | 17 |
| Hydraulic oil tank capacity(L) | 13 |
| Travel speed (km/h) | 2.4/4.2 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 58(30) |
| Arm digging force | 7.5 |
| Bucket digging force (KN) | 13.8 |
| Average grounding pressure (Kpa) | 26 |
| A-Overall length (mm) | 3570 |
| B-Overall width (mm) | 990/1240 |
| F-Overall height (mm) | 2630 |
| C-Overall height (to top of cab)(mm) | 2250 |
| | 990/1240 |
| Counterweight ground clearance(mm) | 460 |
| Min. ground clearance (mm) | 140 |
| Tail swing radius (mm) | 640 |
| Track Ground Length (mm) | 1350 |
| Track length (mm) | 1600 |
| Track gauge (mm) | 990 |
| Track width (mm) | 1240 |
| Track shoe width (mm) | 230 |
| Turntable width(mm) | 286.5 |
| H-Max. digging height (mm) | 3540 |
| I-Max. dumping height (mm) | 2440 |
| J-Max. digging depth (mm) | 2310 |
| K-Max. vertical wall digging depth (mm) | 1910 |
| L-Max. digging reach (mm) | 3900 |
| O-Max. digging reach at ground level (mm) | 3840 |
| M-Min. swing radius (mm) | 1430 |
| Distance between center of rotation and tail length (mm) | 636 |
| Track shoe thickness (mm) | 45 |
| Height of counterweight (mm) | 400 |
| Arm length (mm) | 1200 |
| Boom length (mm) | 2080 |
