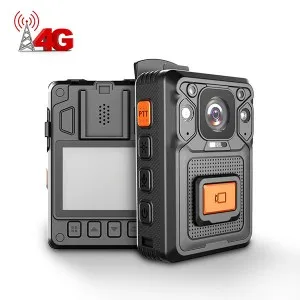

WiFi 3G 4G Waterproof Body Worn Camera

Product Description

Built-in Wifi 4G TF card Body Worn Camera
Parameters

Size/weigth/button
Size	84.5mm*56.3mm*27.3mm
Weight	140g(0.31lb)
Main Parts
Chipsets	Ambarella H22
Sensor	OV05A20
Indicators
	3 color LED indicator for camera status
	3 color LED indicator for battery level
	programmable buzzer
	vibration
Durability
Shock Proof	1.8m (5.9ft)
IP Rating	IP67
Video/picture/audio
Coding	H.264/H.265
View Angle	140 degrees
Video Resolution	1440P30
	1080P30
	720P30
	480P30
Video Format	MP4
Picture format	JPEG
Audio Format	AAC
Snap Shot	During recording
EIS	6 axis image stabilizer(Optional)
Wireless Connections
4G/LTE	4G live video & audio streaming
Clustered PTT	Camera can work like a radio to talk to other via 4G network
Wi-Fi	2.4G&5G, AP/STA/P2P,Wi-Fi channel can be set by cam manager
Bluetooth	Support second development
ONVIF	Support ONVIF streaming & recording Support NVR brand such as Hikvision, Dahua, Uniview and so on
IR	10 meters (2 IR LED)
GPS	Optional Function, can choose to have or not
Battery
Recording Time	1080P Up to 12 Hours;480P Up to 15 Hours
	GPS and WiFi on at 480P30 12 hours and 30 minutes
Standy Time	100+ hours
Charging Time	4 hours
Pre & post recording
Pre-recording	30 seconds to 1 minute varies from resolution settings
Post-recording	30 seconds to 1 minute varies from resolution settings
Motion Detect	support
Security Features(Optional)
File Encryption	AES256 encryption during writing files to memory card
	AES256 encryption RTSP Video/audio/Text streaming data
USB Command & JSON command
	all camera settings available under mass storage mode
	all camera settings available under USB simple mode
	USB heart beat available
	control over LED/buzzer available under mass storage mode
	Ambarella driver free even while USB encryption activated
	Support driver free connection to computer
Hardware Interface
USB Port	For charging and data downloading
Pogo Pin connection	support dock & go operation
Mount solution
Standard mount	360 degrees rotatable crocodile mount
Optional mount	MOLLE compatilbe mount
Optional accessoires	CLICKFAST Stud
Night Vision	Ultral low light performance & IR LED
Storage	Optional 32GB,64GB,128GB
Others
Content supported	User ID/Device ID/Date/Time/Geo-tags/Logo
Working Temperature	-30 -65 degrees celsus
Operating Humidity	95%

Specification
Built-in 32G TF card,Support onvif directly connect to NVR; With Dock Charger
Wifi (WIFI Mode AP/STA; Dual Band:2.4G/5G)
Bluetooth bracelet:When the wearer's heart rate is above or below the set normal value, the Body Camera will automatically start recording video
1. Big Front video button, easy operation, especially when in winter time, officer wear gloves
2. Support AES256 encryption;EIS anti shake, stable video, better evidence, more video details.
3. Support Bluetooth 4.1,Support second development
4. Ambarella H22 Chipset;CMOS Sensor 5MP OV05A20
5. 2 inch 16:9 TFT-LCD High-Resolution Color Display(3 color LED indicator for camera status;3 color LED indicator for battery level)
6.Video Format:MP4;H.265/H.264 (H.265 video coding, 50% storage saving, lower power consumption);Audio Format:AAC; Photo Format:JPG
7. Built-in 3200mAh battery, 12 hours at 1080P @30fps;15 hours at 480P @30fps
8. Video Resolution:2560x1440p@30fps;1920x1080p@60fps;1920x1080p@30fps;1280x720@30fps;848x480@30fps
Streaming Resolution:1280x720@30fps;848x480@30fps;432x240@30fps
9. Photo resolution: 4M / 8M / 12M / 16M/ 32M/ 40M
10. 140° field of view
11. Storage Capacity:Support 16G/32G/64G/128G(With Standard 32GB)
12. 2 Infrared LED Up to 10 Meters Working Range
13. Water Mark :User ID, Time and date Stamp,GPS coordinates Imbedded into Video.
14.IP Rating:IP67 & 2 meters shock-proof
15.Password protect:To set an administrator password to allow deletion via software.User can only view the videos but cannot delete it.
16. Video Transfer: USB 2.0 Type C
17.Support Take picture while video recording
18. Pre-record 60-120 Seconds;Post-record 5/10/20/30/60 Seconds
Dimension:81.5*58*23.7mm /140g
