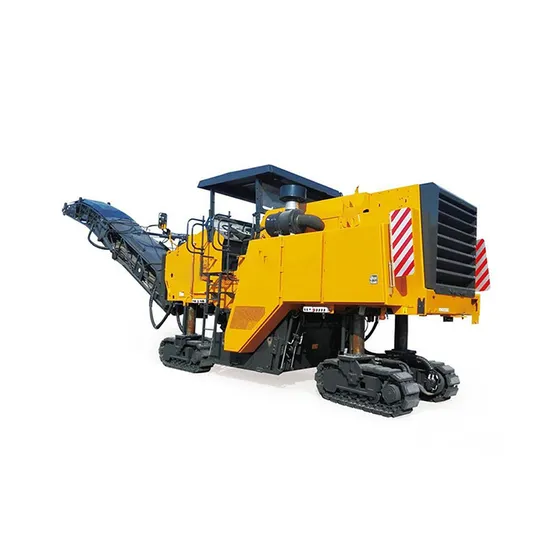

Chinese Top Brand Machine Cold Milling Machine Xm503kl

Product Description

Cold Milling Machine Xm503kl Construction Processes
Products Description XM503/XM503KL road milling machine is an asphalt road maintenance and construction machine mainly used for the maintenance operations of municipal roads and as the auxiliary construction implement for large milling machines. It can realize the small-area digging and renovation of asphalt concrete pavements, including highways, downtown roads, airports, cargo yards, and parking lots, and can be used for the removal of road bulges, asphalt ripples, overlapping curves, and tracks and for the scuffing of cement roads and the milling of pavement jumps. It can realize the milling along edges and manhole covers. It can realize the road crushing function if the optional hydraulic pickaxe is installed and realize the milling of roadside rumble strips if the optional rumble wheel is installed. Featuring high working efficiency, simple construction processes, easy control of milling depth, easy and flexible operations, and good mobility, this machine is an ideal machine for repair, renovation, and maintenance of asphalt roads.

Product Paramenters

Item	Unit	XM503KL
Milling width	mm	500
Maximum milling depth	mm	210
Tool nose distance	mm	15
Number of tools		60
Rotor diameter with tool	mm	750
engine model		SC4H-C140
Engine manufacturers		Shangchai
Rated speed	rpm	2200
Rated power	Kw	103
Displacement	L	4.3
Fuel consumption at rated power	l/h	26.2
Comprehensive fuel consumption	l/h	10.5
Emission Standards		China-
Working speed	m/min	0-30.7
Walking speed	Km/h	0-7.5
Theoretical climbing ability	%	60
Milling drum maximum ground clearance	mm	210
Overall dimensions (length X width X height)	mm	8185X1888X4080
Length X width X height (including conveyor belt)	mm	6276X1888X2530
Length X Width X Height (not including conveyor belts)	mm	3676X1888X2530
Conveyor belt size (length X width X height)	mm	6000X860X860
Total weight	kg	7550
Working weight	kg	7950
Minimum milling radius	mm	350
Maximum ground clearance of milling drum	mm	210
