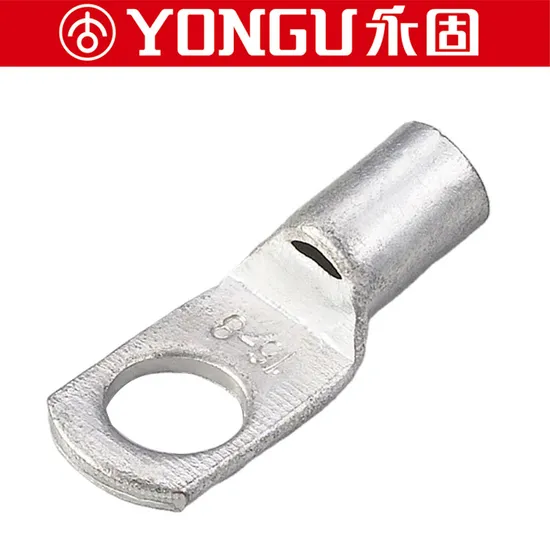

Sc Series Tinned Copper Cable Lug

Product Description

Spy hole copper connecting terminAls

Catalog No.	Dimensions(mm)
	Φ	D	d	L	L1	Catalog No.
DTGA-4	6.2	4.8	3.1	21.0	6.4	SC-4
DTGA-6	6.2	5.5	3.8	24.0	9.0	SC-6
DTGA-10	6.2	6.8	1.8	25.5	10.0	SC-10
DTGA-16	8.2	7.5	6.5	30.5	12.0	SC-16
DTGA-25	8.2	9.0	7.0	34.0	14.0	SC-25
DTGA-35	10.5	10.5	8.2	38.0	14.0	SC-35
DTGA-50	10.5	12.5	9.8	45.0	18.0	SC-50
DTGA-70	12.5	14.5	11.5	50.0	18.6	SC-70
DTGA-95	12.5	17.5	13.8	55.0	23.5	SC-95
DTGA-120	12.5	19.5	15.5	68.0	24.0	SC-120
DTGA-150	16.5	20.5	16.5	71.0	26.0	SC-150
DTGA-185	16.5	23.5	18.8	78.0	33.0	SC-185
DTGA-240	16.5	26.5	21.0	92.0	37.0	SC-240
DTGA-300	16.5	30.0	24.0	102.0	39.5	SC-300
DTGA-400	16.5	34.0	26.5	113.0	46.0	SC-400
DTGA-500	20.5	38.0	30.0	123.0	50.0	SC-500
DTGA-630	20.5	45.0	35.0	135.0	58.0	SC-630
DTGA-800	22.5	50.0	39.0	170.0	73.0	SC-800
DTGA-1000	22.5	56.0	44.0	200.0	89.0	SC-1000

Founded in 1985. Its products cover power transmission and distribution material products such as power fittings, cable accessories, insulators, copper and aluminum materials, and also transmission and distribution equipment products such as circuit breakers on primary and secondary fusion columns, disconnectors, fuses, and arresters. it is a power transmission and distribution system service provider integrating R&D, manufacturing, sales and services. The company is shortlisted as a Class A supplier of State Grid, China Southern Power Grid, and Inner Mongolia Electric Power.
Yongu Electric Power Fittings Laboratory is a nationally accredited laboratory by CNAS. The scope of accreditation involves nearly 80 national standards and 110 testing items, covering nine categories of power fittings. The laboratory has a total area of more than 3,500 square meters, and has introduced German Spectrometer, FEI scanning electron microscope, X-ray digital imaging detection system, optical image detection system, 600kN horizontal tensile testing machine, 300kN vertical tensile testing machine, microcomputer digital display automatic sample injection analyzer, 4000A temperature rise thermal cycle test equipment, 50kV AC high voltage testing machine, metallographic microscope and handheld XRF analyzer, Fourier transform infrared spectrometer and a series of advanced detection equipment.

---
