Acrel Adl400/C 3 Phase RS485 Modbus Energy Meter with MID

Product Description

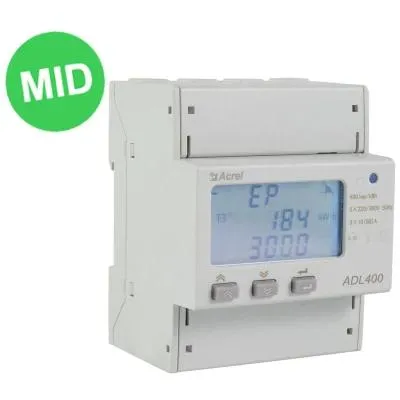

ADL400 Three-phase DIN Rail Energy Meter ADL400 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 48 months, checks the 31st harmonic content and the total harmonic content. It is fitted with RS485 communication port and adapted to MODBUS-RTU .ADL400 can be used in all kinds of control systems, SCADA systems and energy management systems. The meter meet the related technical requirements of electricity meter in the IEC62053-21standards.
Note:The torque of direct connect should not be greater than 3-4N·m,and the torque of connect via CT should not be greater than 1.5-2N·m. It can measure the electrical parameter,include U,I,P,Q,S,PF,F,1~31th harmonic. If:U = 220.1V,f = 49.98Hz, I = 1.99A,P = 0.439kW Such as:U = 220.1V,f = 49.98Hz, I = 1.99A,P = 0.439kW Product Description

* Diverse Electric Parameters Measurement

* Multi-rate/Flexible Tariff

* High kWh Accuracy Class 0.5s

* Harmonic Measuring (Standard)

* HMI for Parameters Setting

* RS485 (MODBUS-RTU)

* IEC62053-22:2003; CE; EAC
