Monthly Deals Stone Edge Cutting Machine for Stone Processing in Ethiopia

Product Description

Product Description:

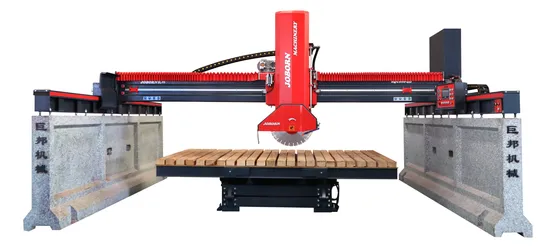

JOBORN SQC450/600/700-4D 3 axis Bridge Stone Cutting Machine
This machine adopts microcomputer control system and human-machine interface, combined with ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, combination of chrome-plated guide pin and wear guide bush, with small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life, main motor uses brand energy-efficient motor, reduces the later using cost; worktable use super heavy large size profiles welding together, larger than the table in the market, with more durable. Main parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy-operating to suit specially cutting granite and marble with high value and big size.
Features:
1.Super-heavy type working plaform.The platform uses heavy large size profiles welding together,larger than the table in market,with more durable.
2.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly,works more stable.
3.Humanized human-computer interaction interface.User-friendly interface,with more simple operation,easy to use.
4.Imported and domestic premium brand electric components.Germany Siemens inverter,feeding more stable;electrical components are used imported or domestic first-line brands.
5.Domestic premium brand of high efficiency and energy saving type main motor,make the cutting more powerful,and saving electricity more.

Super-heavy type working plaform
Taiwan famous brand hydraulic system
Humanized human-computer interaction interface
Imported and domestic premium brand electric components
Cross beam linear guide (modifiable)
Side beam linear guide(modifiable)
Steel rigid base(Optional)
Single-beam lifting machine(Optional)

Technical Parameter:

SQC450/600/700-4D Bridge Cutting Machine
Appellation	Unit	SQC450-4D	SQC600-4D	SQC700-4D
Max.Diameter of saw blade	mm	450	600	700
Max.lifting stroke of cutter	mm	220	350	470
Dimension of working platform	mm	3200*2000
Platform rotation range(Optional)	degree/°	0,90,0~360(one position every 45°)
Platform turn-over degree	degree/°	85°
Max.thickness of cutting	mm	100	180	230
Water consumption	m³/h	3
Power of main motor	kW	15	18.5	22
Total power	kW	21	24.5	28
Dimension(LxWxH)	mm	6000x4800x3000	6000x4800x3200	6000x4800x3400
Weight	kg	5700(incl. steel frame 6500)	5800(incl. steel frame 6600)	5900(incl. steel frame 6700)

Processing Spot:
FAQ:
Q: Are you manufacturer ? A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service. Q: Can I get a machine according to my own requirements? A: Sure. Welcome OEM and ODM orders. Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well. Q: What's your MOQ and delivery? A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you. Q: How is your after sales service? A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance. Q: If my machine is broken. Can you repair it for me? A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.

---
