Single Phase 10kVA 15kVA 20kVA 30kVA 220V AVR AC Automatic Voltage Stabilizer/Regulator

Product Description

INTRODUCTION
TN D/S (SVC) type high-precision fully automatic single and three-phase AC regulated power supply (hereinafter referred to as regulated power supply) is a new generation of regulated power supply developed and produced by our company. The stabilized power supply is composed of a contact type voltage regulator, an automatic control circuit, and a servo motor. When the voltage of the power grid is unstable or the load changes, the automatic control circuit samples, amplifies,and controls the servo motor to drive the rotating arm and brush to rotate in the required direction, so as to adjust the output voltage to the rated value and achieve voltage stabilization. Due to its stable working performance and high cost- efficient feature, it is widely used in CNC machine precision machinery and equipment , laser machinery,printing equipment etc.

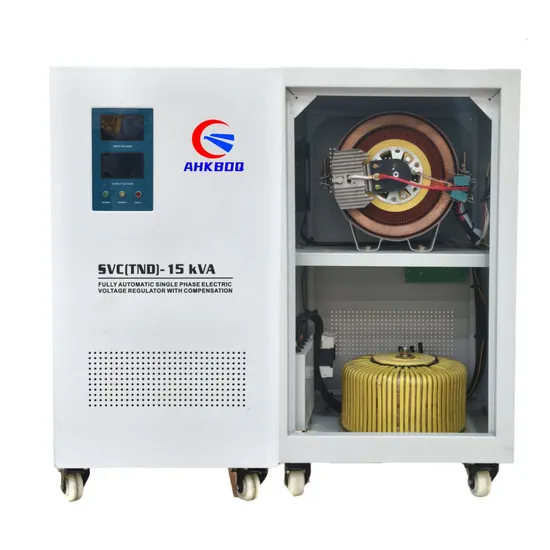

Product Display
Specification

Project	Single phase voltage stabilizer/regulator
Specifications	0.5kVA,1kVA, 1.5kVA,2kVA,3kVA, 5kVA,10kVA,15kVA,20kVA,30kVA etc
Input Voltage Range	150V~260V
Output Voltage	220V
Voltage Stabilization Accuracy	≤± 3%
Frequency	50H z 60H z
Power Factor	0.8
Waveform Distortion	No additional waveform distortion
Reaction Time	≤ 3 s (when the input voltage changes by 10%)

Dimensions

Single phase voltage stabilizer/regulator (TND)
Model	Input voltage(Vac)	Size(MM)	Weight(KG)
TND-2KVA	Input voltage 220v±20%/30% Or customized	260*240*195	8
TND-3KVA		235*290*230	12
TND-5KVA		320*235*270	15
TND-10KVA		320*275*530	38
TND-15KVA		380*340*680	55
TND-20KVA		380*340*680	65
TND-30KVA		420*380*800	80
TND-40KVA		420*380*800	100
TND-50KVA		550*450*750	125
TND-60KVA		550*450*750	145

Application scenariosVoltage stabilizer/regulator are widely used in multiple fields:Building Power Supply: Used for power distribution in commercial buildings, residential communities, office buildings, and other buildings, especially in places with high environmental and fire safety requirements.Industrial facilities: Provide stable power support in industrial production lines, factories, mines, and other places.Transportation facilities: Electricity supply for public transportation facilities such as subways, airports, and stations.Hospitals and schools: Due to their superior safety and reliability, they are commonly used in important facilities such as hospitals and schools.Computer room and data center: Voltage stabilizer provide high-quality power supply and protect sensitive computers and data equipment.
Certifications
Packing & Delivery To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company ProfileAnhui Kebang Electric Technology Co., Ltd. is a BIG enterprise that has passed ISO9001 / 14001 / 45001 quality management system certification. S11, SZ 11 distribution products transformer, SCB10, SCB11, SGB10 dry transformer, YBM31-12/0.4 (F · R) prefabricated substation, ZGS 9-H ( Z ) combined transformer, SBH 15 amorphous alloy transformer and 20KV , 35KV, 110KV, 220KV, 400KV transformers are approved by the National Transformer Quality Supervision and Inspection Center and Henderson Inspection Institute.
FAQ
1. who are we?We are based in Anhui, China, start from 2019,sell to Domestic Market(50.00%),Eastern Asia(10.00%),South Asia(5.00%),South America(5.00%),Mid East(5.00%),Northern Europe(5.00%),Africa(5.00%),Southeast Asia(5.00%),Oceania(4.00%),Southern Europe(3.00%),North America(2.00%),Western Europe(1.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Transformer,Voltage stabilizer,Voltage regulator,Compact substation,Frequency converter4. why should you buy from us not from other suppliers?We have 15 years of experience in electric equipments and have implemented a strict and complete quality control system to ensure quality and safety, so we have a good reputation in this field and are favored by domestic and foreign customers.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.

---
