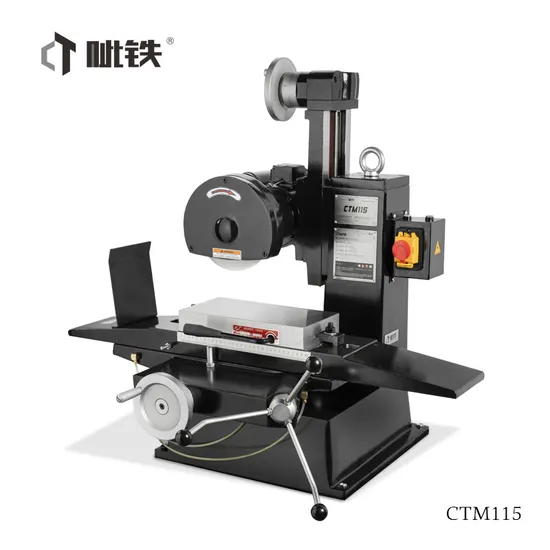

Universal Grinder and Universal Reamer Bit Grinding Machine for Various Tools

US$2,236.00
1-4 Sets
US$2,146.00
5-9 Sets
US$2,057.00
10+ Sets

Basic Info.

Model NO.
CTM115
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
930*840*970mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Product Description

Maximum cutting amount shall not be greater than 0.03mm
Maximum linear speed of grinding wheel 35m/s
Work table size 152x304mm
Maximum grinding height 210mm
Longitudinal stroke 340mm
Lateral stroke 170mm
T-slot of worktable (number×parameter) 1-12mm
Grinding wheel size 180x32x13mm
Vertical feed per graduation 0.025
Lateral feed per graduation 0.02
Motor power 550w
Net weight 210kg
Dimensions 930x780x730mm
Package Size 1100x760x860mm
