Semi Flexible Coaxial Transmission and Communication Cable

Product Description

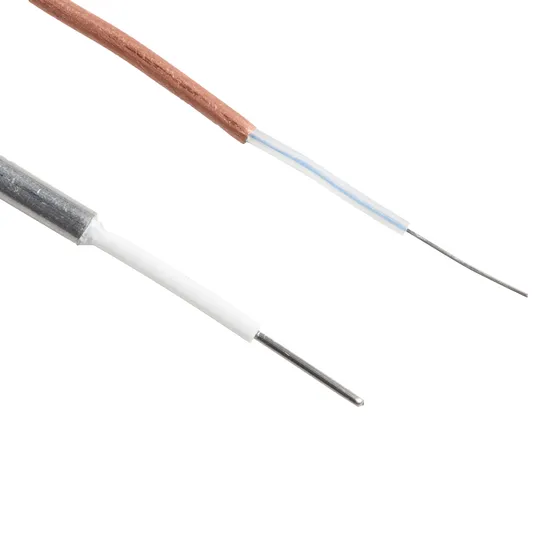

Product Description Semi-Flexible Cable SXE
Application: Semi-flexible microwave coaxial cable for the black box, mobile communication base station, delay lines and microwave,RF equipment,and various other internal wiring of electronic equipment.
TC+Tin: Tinned Copper braid.tin soaked
SC: Silverplated Copper
SCCS: Silverplated Copper Clad Steel
PTFE: Polytetrafluoroethylene
FEP: Fluorinated Ethylene Propylene

RG-Type				670-141/35SXE	670-141/75SXE	670-141/100SXE	670-160SXE
Stucture
1. Inner Conductor		Material		SC	SCCS	SCCS	SC
		Construction		1.4	0.52	0.28	1.08
2. Insulation		Material		PTFE	PTFE	PTFE	PTFE
		Dia.		2.98	2.98	2.98	3.50
3. Outer Conductor		Braid Material		TC+Tin	TC+Tin	TC+Tin	TC+Tin
		Dia.		3.58	3.58	3.58	4.10
4. Jacket		Material		FEP(Blue)	FEP(Blue)	FEP(Blue)	FEP(Blue)
		Dia.		4.10	4.10	4.10	4.70
Electrical Characteristics
Item Spec.Value
Capacitance(PF/m)				136	62	47.6	95
Impedance(Ω)				35	75	100	50
Velocity of Propagation(%)				70	70	70	70
Bending radius(mm)				36	36	36	30
Time delay (ns)				4.7	4.7	4.7	4.7
Max.test.voltage(kvrms)				1.9	1.9	1.9	2.1
Min.Screening effectiveness up to 18GHZ				100	100	100	100
Mechanical Characteristics
Item Spec.Value
Min.bending radius static(mm)				8	8	8	10
Min.bending radius repeated				40	40	40	40
Opearating temperature(C)				-55 to 125	-55 to 125	-55 to 125	-55 to 125
Attenuation&Average Power@20ºC
Frequency	Item		Unit Spec.Value
0.5	Attenuation		dB/m	0.29	0.28	0.35	0.07
	Power(CW)		W	552.4	549	245.5	1205.4
1.0	Attenuation		dB/m	0.41	0.4	0.5	0.32
	Power(CW)		W	384.6	382.2	172.2	867.4
5.0	Attenuation		dB/m	0.99	0.97	1.16	0.89
	Power(CW)		W	161.5	160.6	74.5	322.1
10.0	Attenuation		dB/m	1.48	1.45	1.69	1.26
	Power(CW)		W	109.2	108.6	51.5	234.3
20.0	Attenuation		dB/m	2.25	2.21	2.49	2.45
	Power(CW)		W	72.7	72.4	35.1	142.3

Application Area

Manufacturing Shop

Certifications
Packaging & Shipping
Company Profile Jiangyin Yuanda Electrical Material Co., Ltd. is a professional manufacturer, and our main products include
A. Series of automotive cables which can meet various standards , like ISO, SAE, JASO, JB/T, VW, LV, GMW and etc. ; B. RF, RG series of coaxial cables with abroad application in cellphone , laptop , router , 5G/6G , war industry , smart car and etc. for communication ;C. UL, VDE, CCC verified , PVC/cross-linked polyolefin/silicone rubber/fluoroplastic insulated series of household electric appliance wires ;D. Heat resistant silicone rubber sleeves with (or without) fiberglass braid , widely used in household appliances, motors, vehicles and etc. ;E. Special cables applicable to urban orbitals, photovoltaic systems, wind power generation, space navigation and etc..


Our Advantages Yuanda have abundant technical strength, advanced equipment ,functional testing facilities and good quality-ensuring systems . We have acquired the certificates of IATF 16949,ISO 9001,ISO 14001,OHSAS 18001 for automotive cables and communication cables . Series of silicone rubber, fluorine plastic, crosslinked polyolefin electronic wires and sleeves are certified by UL,VDE and CCC.Especially our aluminum conductor cable , new energy high-voltage shield cable , and some coaxial cables used in automotive , enjoy high popularity in automotive industry. With high-qualify products, reasonable price and splendid after-sales service, our products supporting customers are exported to the world.

---
